Product Description

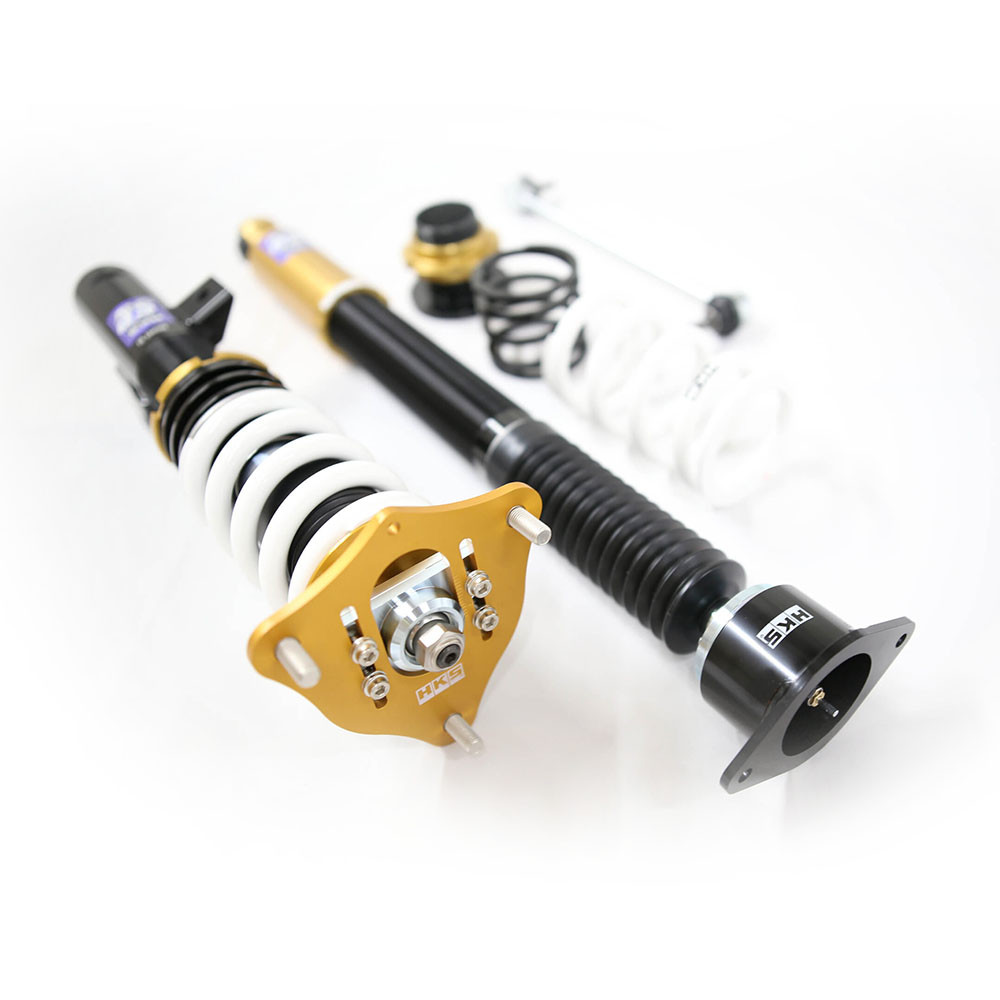

This single tube, 30 way adjustable, coilover sport suspension is ideal for track and high speed driving. It provides increased radial grip and spring rate and reduces body roll. The front single tube inverted type suspension keeps things rigid and secures stroke quantity. The rear shock body length adjustable type keeps things comfortable and reduces unsprung weight. It includes an adjustment dial which can change the damping force without needing to lift the car.
* Front: Single Tube Inverted Type. For the front side, instead of the shock body length adjustable type, inserting the cylinder into the knuckle insertion achieves high rigidity and secures the stroke quantity that cannot be provided by a shock body length adjustable type. A high level of ride quality and handling are provided.
* Rear: Single Tube Shock Body Length Adjustable Type. High-strength billet aluminum bracket reduces the unsprung weight. This single tube shock absorber with a large-diameter piston provides comfortable riding quality without unpleasant upthrust feeling.
* Camber adjustable pillow upper is installed to the front side. The camber can be adjusted according to the tire size and/or driving conditions.
* Error message appears when installed. Error Canceler is available (HKS-45012-AH001) MSRP $500.00 Or purchase it as a kit (HKIS-80250-AH003C) and Save $100.00
Product Features:
* Suitable damper setting reduces unnecessary movement in sports use, which also improves drivability and creates more grips on tires with fast response in cornering. Increasing the spring rate reduces the body roll, and the single tube inverted type provides sharp and direct handling.
* The camber adjustable pillow upper for the front side and original upper mount design for the rear side.
* The separated type of spring for the rear side utilizes the direct coil spring with selected rate.
* Error canceller is available as an optional part. This cancels the error message that appears when the stock suspension is removed.
* Mono Tube.
* Inverted Type (Front).
* 30 Way Adjustable Damping.
* Shock Body Length Adjustable.
* Special Oil.
* PNE Coating.
* Aluminum Bracket.
* Pillow Upper Mount.
* Adjustable Camber (Front).
* Spec Change Available.
* Overhaul Available.
* 1 Year Warranty.
---
RIDE HEIGHT ADJUSTABLE RANGE:
* FRONT SPRINGS (-15 MM TO -38 MM)
* REAR SPRINGS (-7 MM TO -50 MM)
* FRONT SPRING RATE: 12.0 KG
* REAR SPRING RATE: 10.0 KG
---
FITS:
* 2017 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO / HATCHBACK
* 2018 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO / HATCHBACK
* 2019 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO / HATCHBACK
* 2020 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO / HATCHBACK
* 2021 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO / HATCHBACK
