Product Description
GReddy Performance Products is proud to add the full line of Turbo by Garrett GTX-R turbochargers to our GReddy line-up. With more options to better match the ideal turbocharger(s) to each specific application, look for more aggressive turbo kits from the GPP Turbo Kit line.

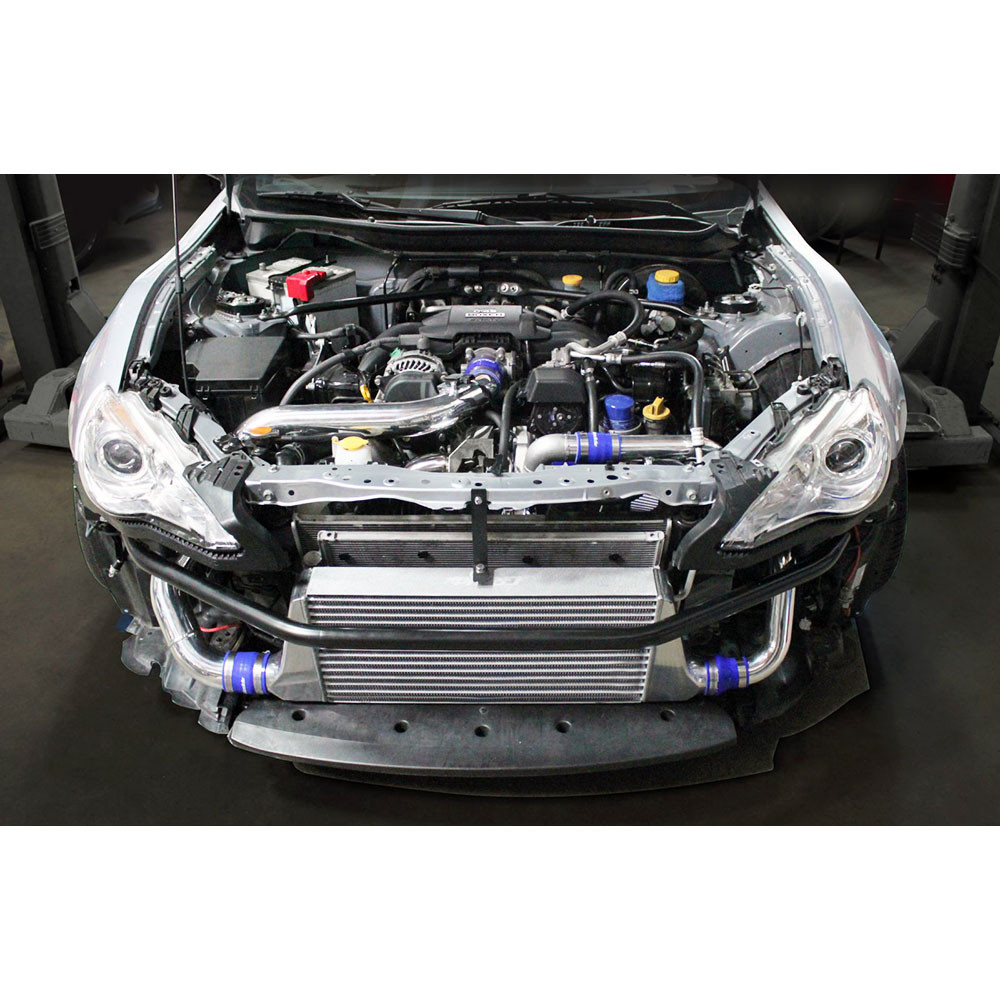

The latest addition to our FR-S/86/BRZ Tuner Turbo Kits is our Version 3, GTX-R Tuner Turbo Kit for the 2012-2017 FR-S, GT-86 and BRZ. Designed around a powerful Garrett GTX-2867R Gen II (with a rated range of 275 HP - 550 HP) this updated kit features a larger, centered GReddy Type-24 intercooler and all the necessary hardware for a versatile tuner kit, that will be an ideal fit for both stock FR-S/86/BRZ engines, as well as fully strengthened FA20 engines.
GReddy dyno test showed a +130 WHP / +97 FT-LBS @ 11.75 PSI on a stock 2013 Scion FR-S with factory injectors and fuel pump, just adding a GReddy-tuned EcuTek Ecu, and a GReddy Evo3 70 MM exhaust, (Note: Tuning for more power will require additional fuel enrichment upgrades) But even more importantly, the mid-range torque from 3150-4750 RPMs are significantly improved over the stock torque curve.
The Tuner Turbo Kit includes: a top-mounted GReddy T620Z 10cm2 actuator turbo on an equal length 4-1 SUS header-type exhaust manifold with dual flex joints, SUS downpipe and cat-delete, free-flow Airinx AY-SB intake, short-routing intercooler piping, Type-24E front-mounted intercooler with cast end-tanks and all the necessary brackets, heat-shields, hoses, clamps, and gaskets.
Product Features:
* Tuner Turbo Kit. (Additional fuel management not included).

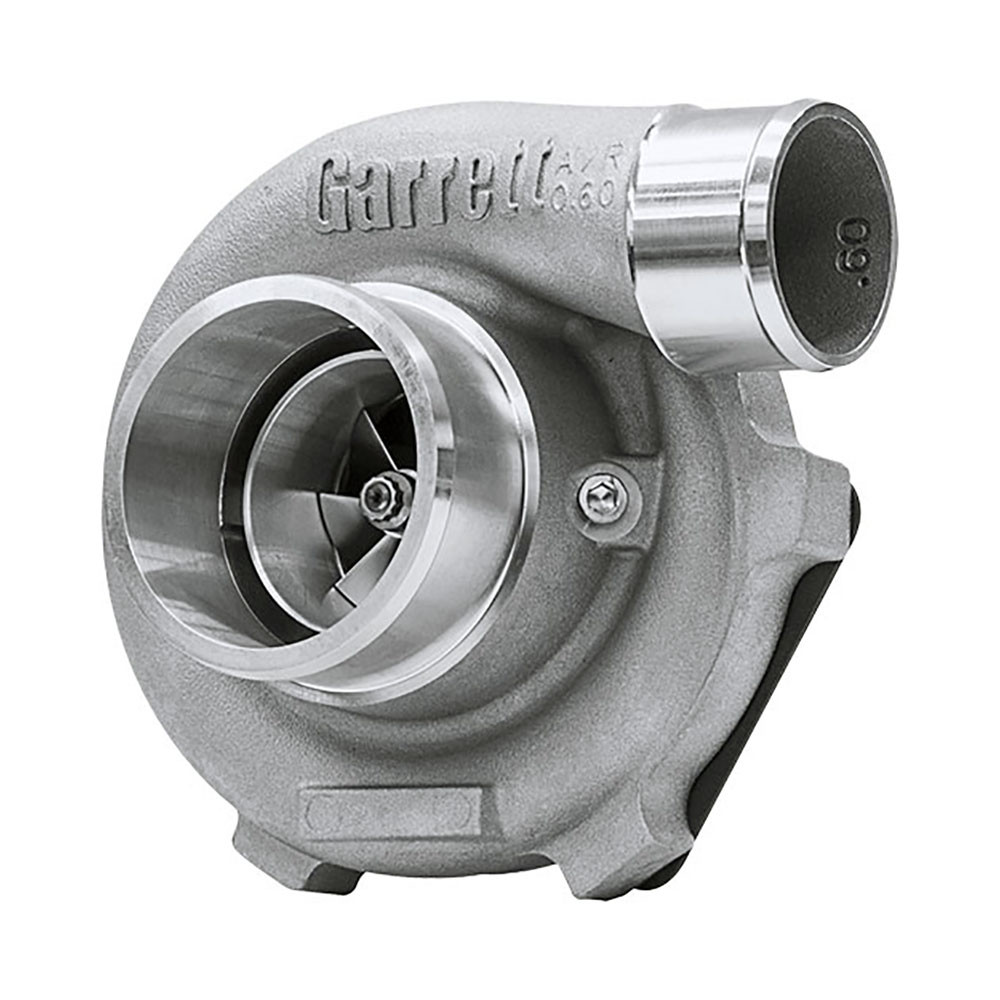

* Advanced Garrett GTX 2867-R Gen II actuator turbo. (Top-mounted).
* 4-1 SUS Exhaust Manifold with dual flex-pipes. (Header type).
* Large SUS downpipe & front pipe. (Removes catalytic-converters).
* Free-flow Airinx AY-SM air intake.
* Aluminum intercooler piping. (Direct routing).
* Large centered Type 24E Intercooler with end-tanks.
* Includes necessary gaskets, heat shields, couplings, hose, mounting brackets, etc.
---
FITS:
* 2013 SCION FRS (2.0L) ENGINE
* 2014 SCION FRS (2.0L) ENGINE
* 2015 SCION FRS (2.0L) ENGINE
* 2016 SCION FRS (2.0L) ENGINE
FITS:
* 2013 SUBARU BRZ (2.0L) ENGINE
* 2014 SUBARU BRZ (2.0L) ENGINE
* 2015 SUBARU BRZ (2.0L) ENGINE
* 2016 SUBARU BRZ (2.0L) ENGINE
* 2017 SUBARU BRZ (2.0L) ENGINE
* 2018 SUBARU BRZ (2.0L) ENGINE
* 2019 SUBARU BRZ (2.0L) ENGINE
* 2020 SUBARU BRZ (2.0L) ENGINE
* 2021 SUBARU BRZ (2.0L) ENGINE
FITS:
* 2017 TOYOTA 86 (2.0L) ENGINE
* 2018 TOYOTA 86 (2.0L) ENGINE
* 2019 TOYOTA 86 (2.0L) ENGINE
* 2020 TOYOTA 86 (2.0L) ENGINE
* 2021 TOYOTA 86 (2.0L) ENGINE
