Product Description
The 3P from Air Lift Performance is a pressure based management that features 5 user-programmable pressure presets and individual, four corner, air spring control. The 3P's wired digital controller displays all four bag pressures as well as the tank pressure. The controller uses a full color, backlit screen and features a rotatable keypad that allows for horizontal controller mounting.

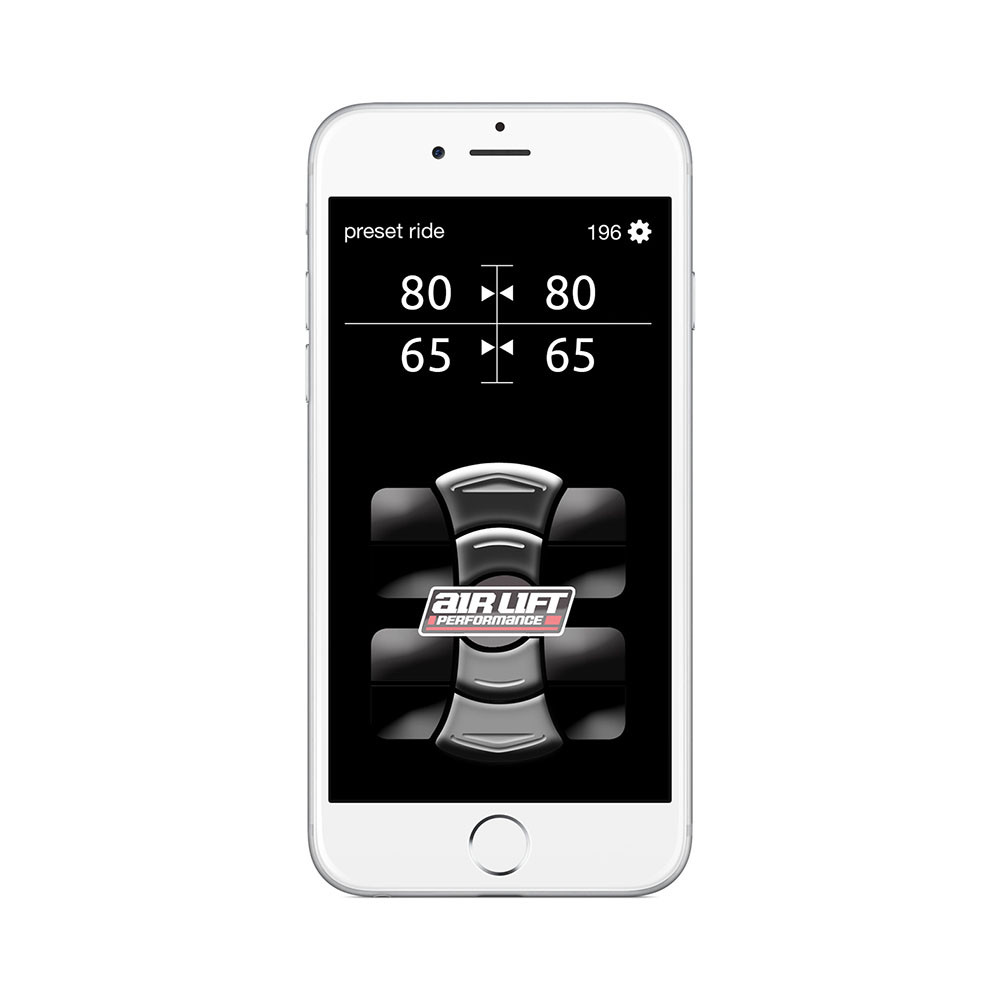

Air Lift's mobile app allows the vehicle to be put into a "show mode" which enables you to remotely control the air suspension using your Bluetooth enabled smart phone (iPhone/Android) from a distance once the vehicle has been turned off. No additional hardware is required to use this feature, it is built into every 3P and 3H system! Future system updates can be applied through the app as well.
If you're looking for a system that takes both pressure and height into consideration, you should look into purchasing the Air Lift Performance 3H Air Management Package. If you'd rather get the 3P to start, you can always upgrade to the 3H at a later date by purchasing Air Lift's 3P to 3H Upgrade Kit.
Product Features:
* 5x User-definable pressure presets. (Can be upgraded to height).
* Manual mode for individual air spring control.
* Digital controller with color screen.
* Rotatable keypad that allows for horizontal mounting.
* Mobile app. (No additional hardware required).
* System updates through mobile app.
* Combined ECU and manifold.
* Rise on start.
* Limited lifetime warranty.
---
System Features:
* Up to 5 presets for your favorite ride heights or pressures.
* FREE mobile app. No extra hardware required.
* Rise-on-start feature. No driver input required.
* Show mode. Control your car in key-off position with controller or app.
* Anti-cross loading & Axle equalization. Keeps the chassis weight evenly distributed for best handling.
* Integrated manifold design makes installation and wiring simple and compact.
* Limited Lifetime Warranty.
---

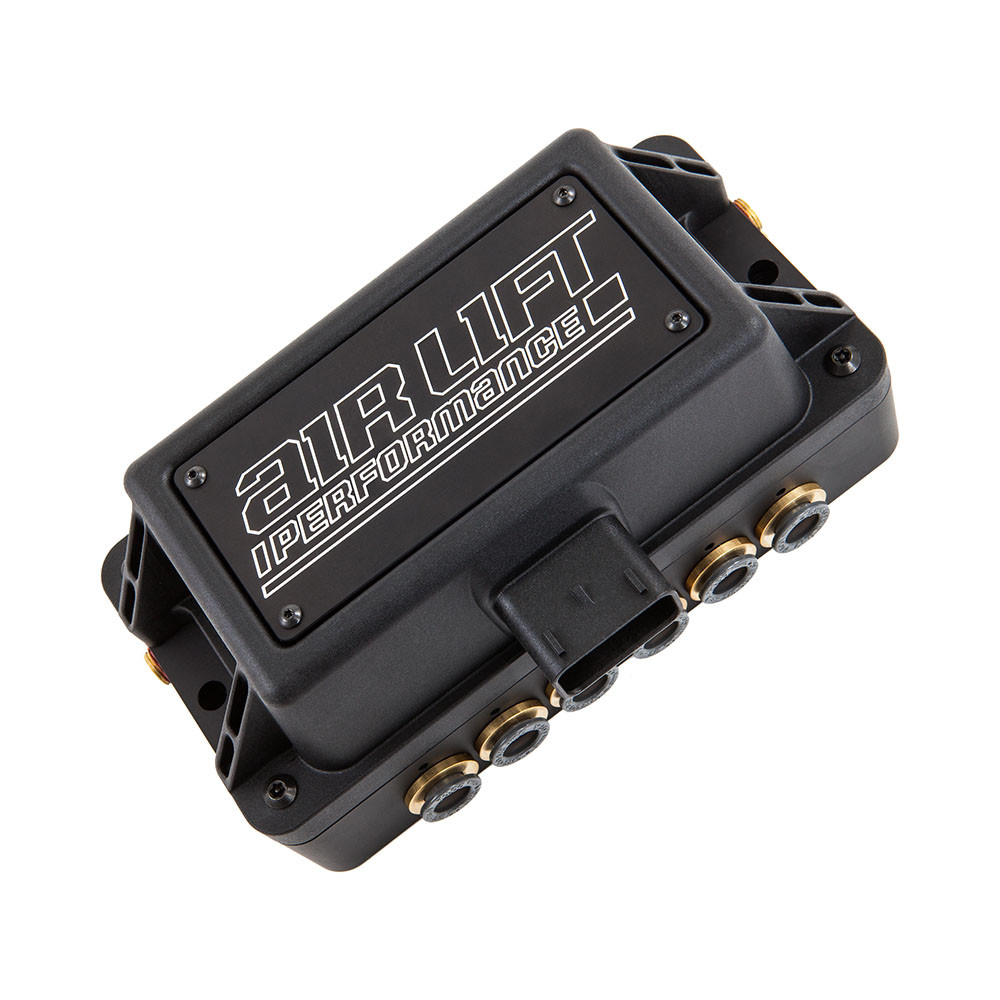

Manifold Features:
* Available in 1/4 Inch or 3/8 Inch line configurations.
* ECU, pressure sensors and Bluetooth module in one unit.
* On-board accelerometer detects vehicle motion preventing unwanted adjustments.
* A state-of-the-art 32-bit processor powers advanced height & control algorithms.
* Torture-tested with high pressure water spray, dust intrusion, and environmental temperature chamber tests. (Baked to 167°F/74°C and arctic chilled to -40°F/°C).
* Every manifold is 100% end-of-line tested on state-of-the-art validation equipment.
---
Height Sensors Features: (3H Only)
* Unique arm design reduces stress on sensor hardware.
* Connect your existing compatible height sensors to our system, or easily upgrade from 3P to 3H using our height upgrade kit.
* Torture-tested for 3 million cycles. (300,000 Simulated miles).
* Our sensor cables have tiny connectors, which means they can easily fit through existing holes in the body or frame.
---

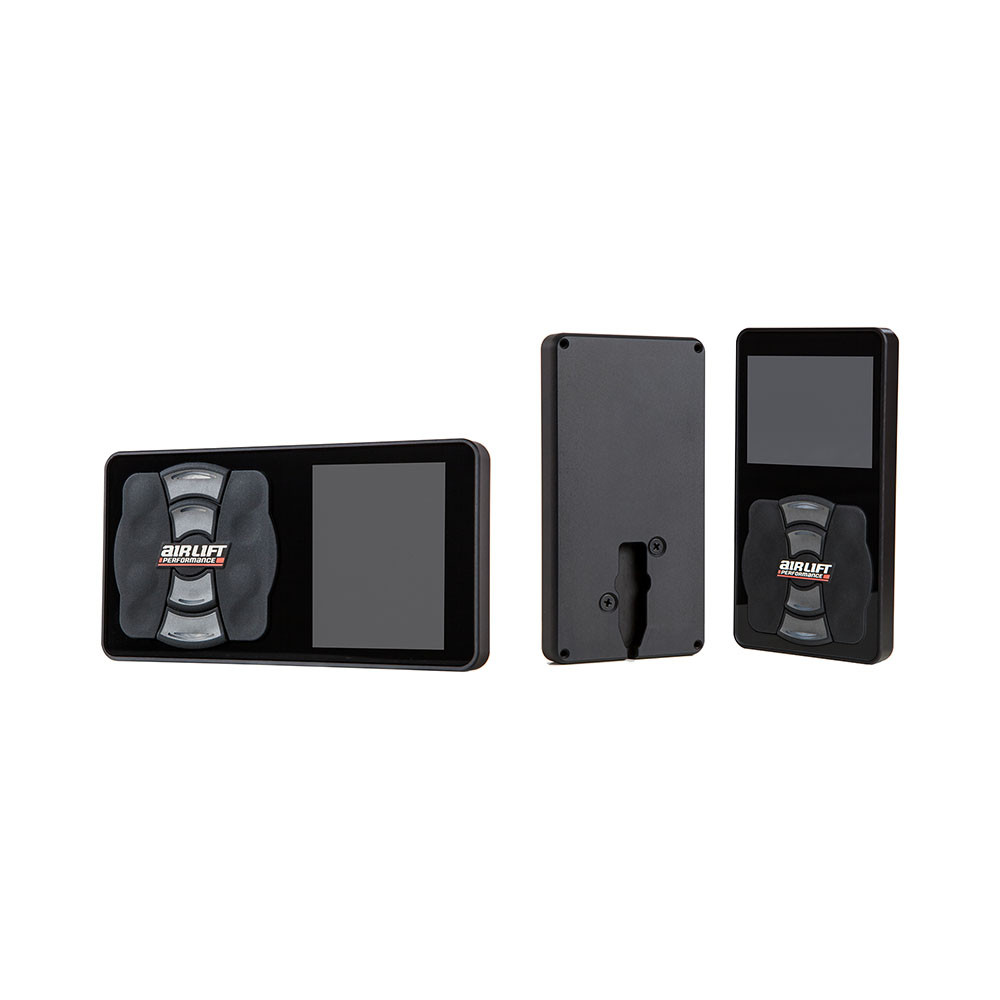

Controller Features:
* Full-color display with adjustable backlight.
* Easy to read pressure and height conditions.
* Programmable all-up and all-down buttons.
* Black-anodized, billet aluminum casing.
* Rotatable keypad for horizontal mounting.
---

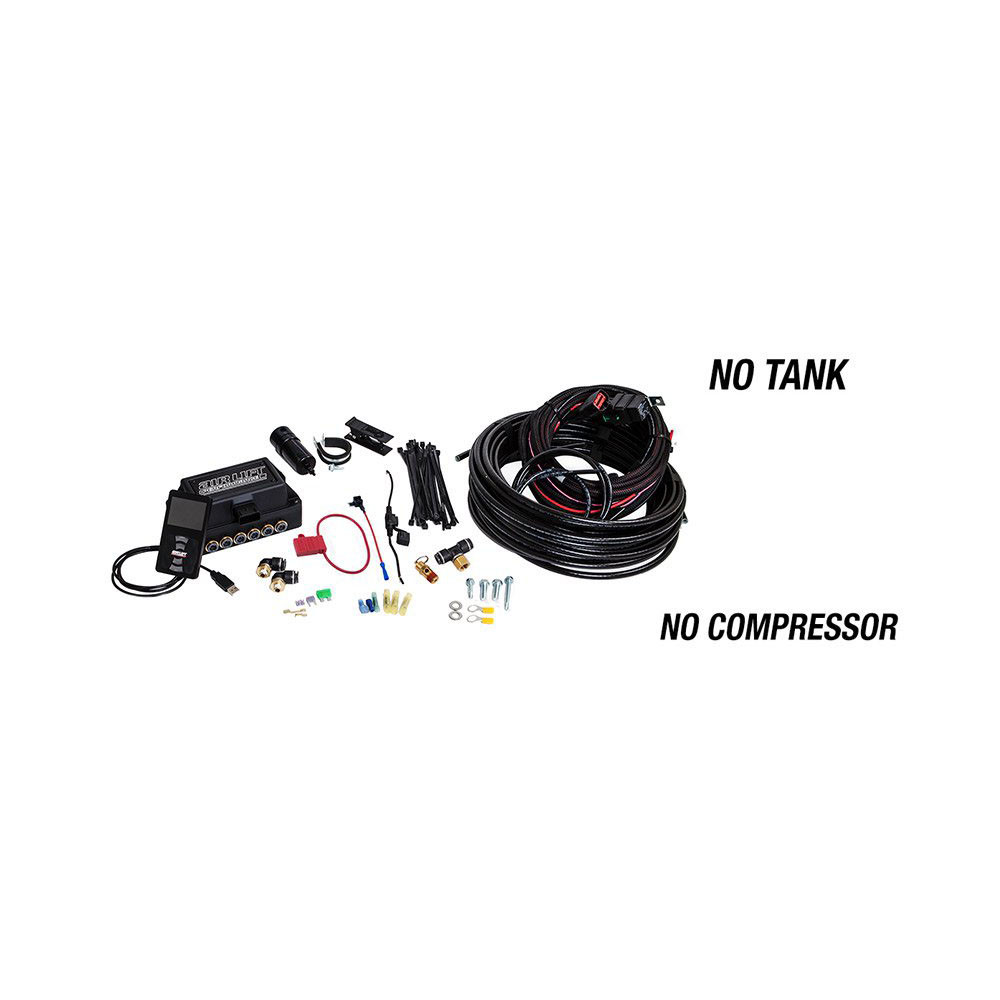

Basic Kit Includes:
* 3P Digital Controller or 3H Digital Controller.
* Integrated ECU + Manifold.
* Advanced Electrical Wiring Harness.
* Auto-Draining Inline Water Filter.
* All Wiring, Fuses, Hardware, Etc. Required for Installation.
* Options: 60 Feet of Air line (1/4 Inch or 3/8 Inch).
* Options: Air Tank (None / Raw Finish / Polished).
* Options: Air Compressor. (None / Single Pump / Dual Pump).
---
FITS: UNIVERSAL APPLICATIONS
