Product Description
The 3H from Air Lift Performance is both a height and pressure based management that features 5 preset heights and individual four corner air spring control. The height based sensors give the system the ability to automatically and accurately re-level when loads change. (IE: adding a passenger or traveling with luggage).
Installing height sensors is often a daunting task for the weekend mechanic, but worry not because Air Lift has designed the 3H so that it can operate in "pressure-only mode" in the event that you don't have time to get the sensors installed right away, or you just can't wait to test out your new suspension!

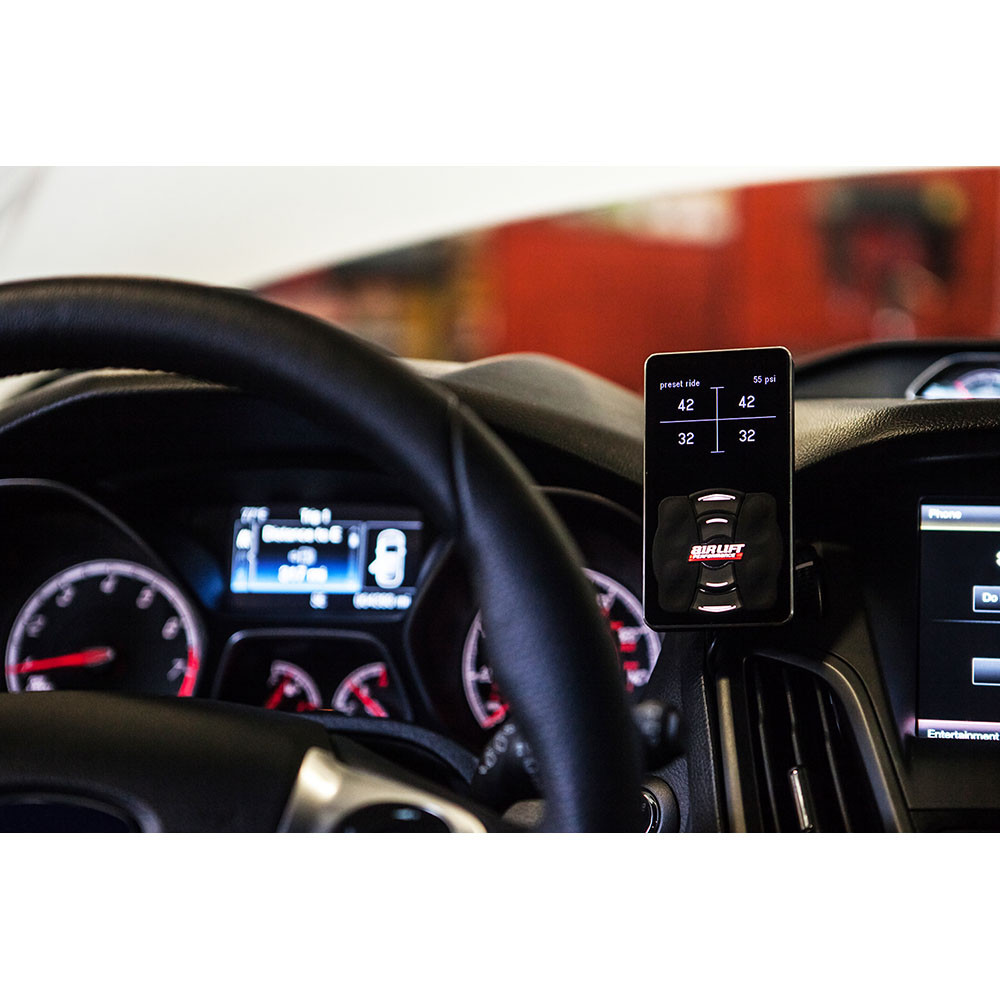

The 3H's wired digital controller displays all four bag pressures as well as the tank pressure. The controller uses a full color, backlit screen and features a rotatable keypad which allows for either vertical or horizontal controller mounting.

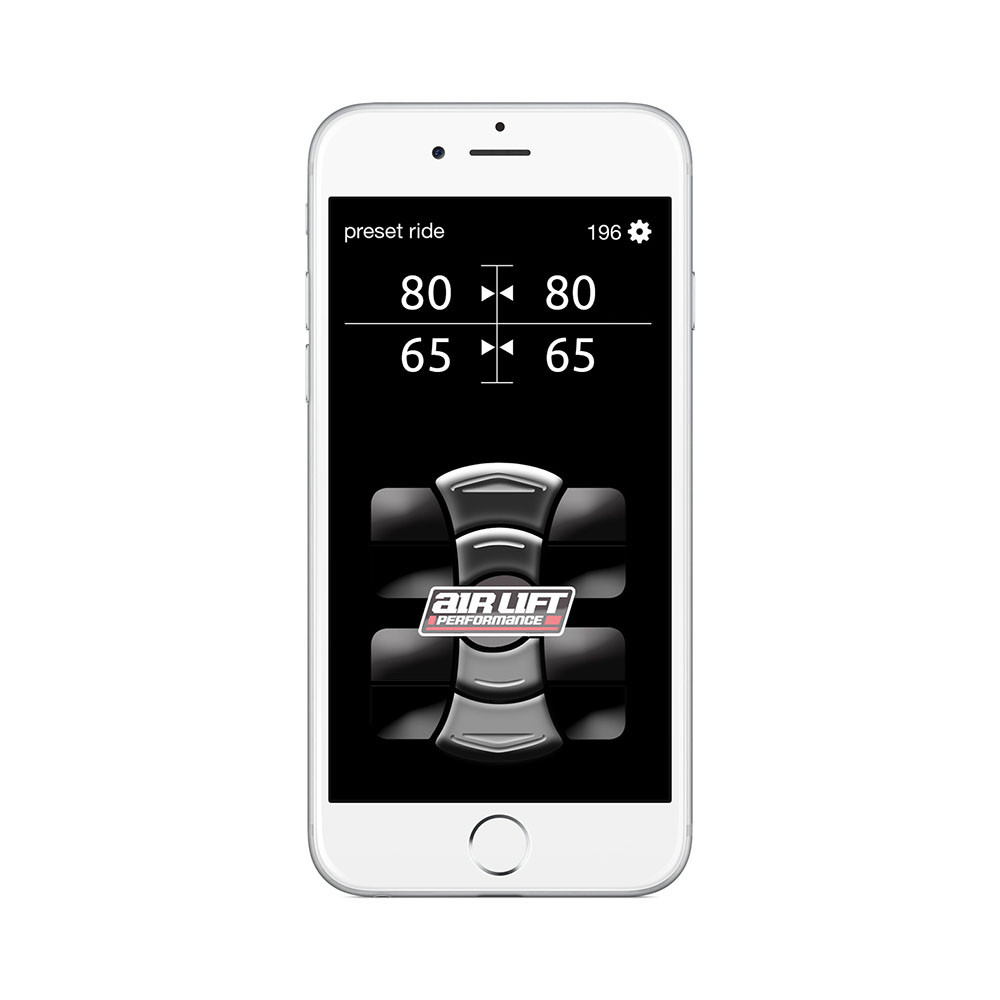

Air Lift's mobile app allows the vehicle to be put into a "show mode" which enables you to remotely control the air suspension using your Bluetooth enabled smart phone (iPhone/Android) from a distance once the vehicle has been turned off. No additional hardware is required to use this feature, it is built into every 3P and 3H system! Future system updates can be applied through the app as well.
Air Lift's digital management system utilizes a combined ECU and manifold which greatly simplifies the installation process. The included plug-n-play wiring harness will power a single compressor and if you're planning on running dual compressors, you'll need to pick up the Air Lift 3H/3P Second Compressor Harness.
Product Features:
* 5x height and pressure presets.
* Automatic leveling. (With height sensors installed).
* Manual mode for individual air spring control.
* Digital controller with color screen.
* Rotatable keypad that allows for horizontal mounting.
* Mobile app. (No additional hardware required).
* System updates through mobile app.
* Combined ECU and manifold.
* Rise on start.
* Limited lifetime warranty.
---
Manifold Features:
* Available in 1/4” & 3/8” line configurations.
* ECU, pressure sensors and Bluetooth module in one unit.
* On-board accelerometer detects vehicle motion preventing unwanted adjustments.
* A state-of-the-art 32-bit processor powers advanced height & control algorithms.
* Torture-tested with high pressure water spray, dust intrusion, and environmental temperature chamber tests (baked to 167°F/74°C and arctic chilled to -40°F/°C).
* Every manifold is 100% end-of-line tested on state-of-the-art validation equipment.
---
Height Sensors Features: (3H Only)
* Unique arm design reduces stress on sensor hardware.
* Connect your existing compatible height sensors to our system, or easily upgrade from 3P to 3H using our height upgrade kit.
* Torture-tested for 3 million cycles. (300,000 simulated miles).
* Our sensor cables have tiny connectors, which means they can easily fit through existing holes in the body or frame.
---
Controller Features:
* Full-color display with adjustable backlight.
* Easy to read pressure and height conditions.
* Programmable all-up and all-down buttons.
* Black-anodized, billet aluminum casing.
* Rotatable keypad for horizontal mounting.
---
BASIC KIT INCLUDES:
* 3P Digital Controller or 3H Digital Controller.
* Integrated ECU + Manifold.
* Advanced Electrical Wiring Harness.
* 60 Feet of 1/4 Inch Air line or 3/8 Inch Air Line.
* Auto-Draining Inline Water Filter.
* All Wiring, Fuses, Hardware, Etc. Required for Installation.
* Air Tank. (Options) None. Raw Finish or Polished.
* Air Compressor. (Optional). None. Single or Dual.
---
FITS: UNIVERSAL APPLICATIONS
