Product Description

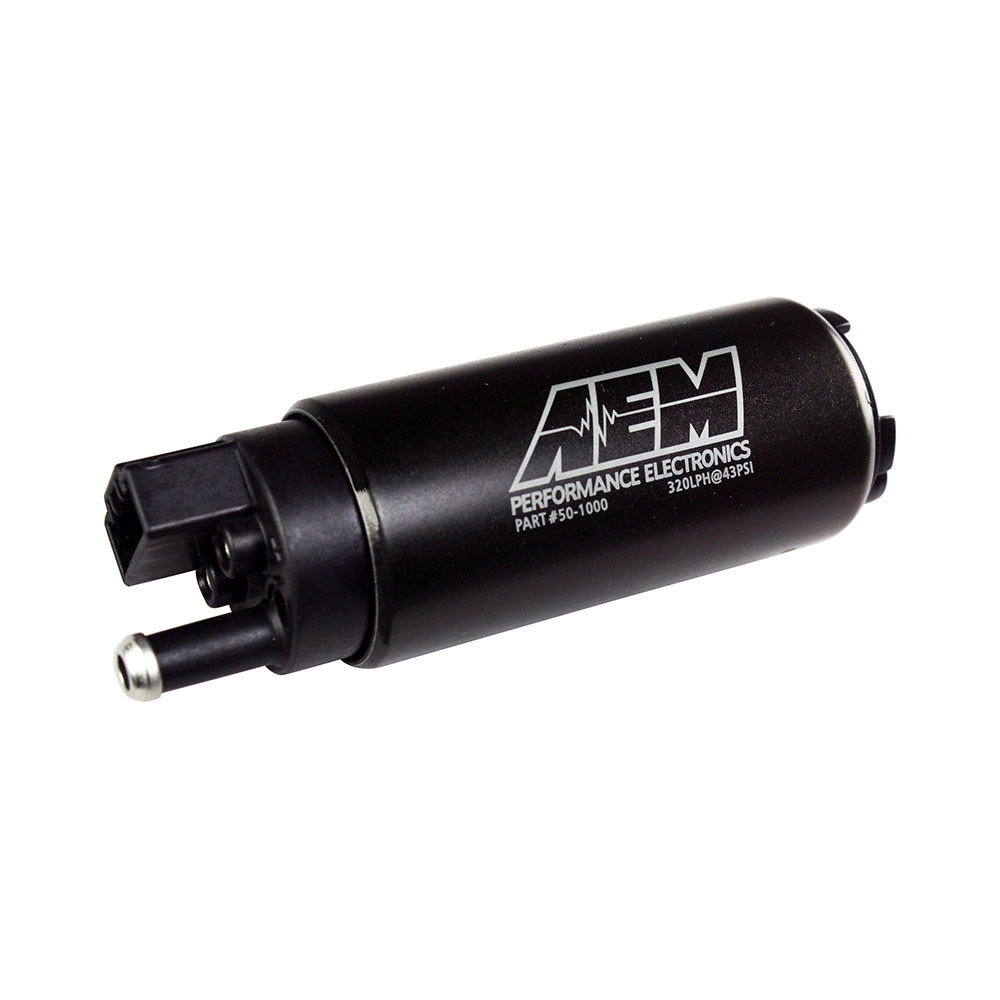

AEM Performance Electronics High Flow In-Tank Fuel Pump for high performance naturally aspirated and forced induction EFI vehicles (PN 50-1000). It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps. The AEM High Flow Fuel Pump flows 340 LPH (84 GPH) at 40 PSI and is capable of supporting over 1,000 HP at 43 PSI.
The AEM High Flow Fuel Pump is designed for in-tank mounting and features a compact 39 MM diameter that fits most applications. It has an offset inlet design that eases installations and includes a wiring harness, pre filter, internal fuel hose and clamps, end cap and rubber buffer sleeve. Every pump is tested to flow 340 LPH at 40 PSI before it is packaged for sale.
Product Features:
* Designed for high output naturally aspirated and forced induction EFI vehicles.
* In-Tank design.
* Tested to flow 340 LPH @ 40 PSI.
* 39 MM diameter fits most applications.
* Offset inlet design eases installation.
* Each pump individually tested.
* For gasoline vehicles. (Pump life may be diminished when used with E85 fuel).
* Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead.
PRODUCT FEATURES:
* Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline.
* Designed for high output naturally aspirated and forced induction EFI vehicles.
* In-Tank design.
* Each pump is tested to flow 340 LPH @ 43 PSI.
* 39 MM diameter fits most applications.
* Offset inlet design eases installation.
* Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead.
* Pump body size 39 MM diameter x 81 MM length.
---
TECHNICAL SPECS:
* Weight: 12.5 OZ. (354 Grams).
* Outside Diameter: 39 MM OD.
* External Materials: Black plated steel with laser etching, green end caps.
* Inlet Fitting: 7.7 MM ID, 11.0 MM OD. Offset Inline.
* Outlet Fitting: 8 MM hose clamp. Offset.
* PRV Activation: 80 PSI.
* Impeller Design: Single Scroll Hard Anodized Aluminum Turbine.
---
VOLTAGE SPECS:
* Connector Terminal: 6 MM Spade (Pos/Neg).
* Min Voltage Input: 6 Volts.
* Max Voltage Input: 18 Volts.
* Current Draw (40 PSI): 12 Amps (13.5 Volts).
* Current Draw (80 PSI): 15 Amps (13.5 Volts).
* Fuse: 15 Amps (13.5 Volts), 20 Amps (13.5 Volts) MAX.
---
FITS: UNIVERSAL APPLICATIONS
