Product Description

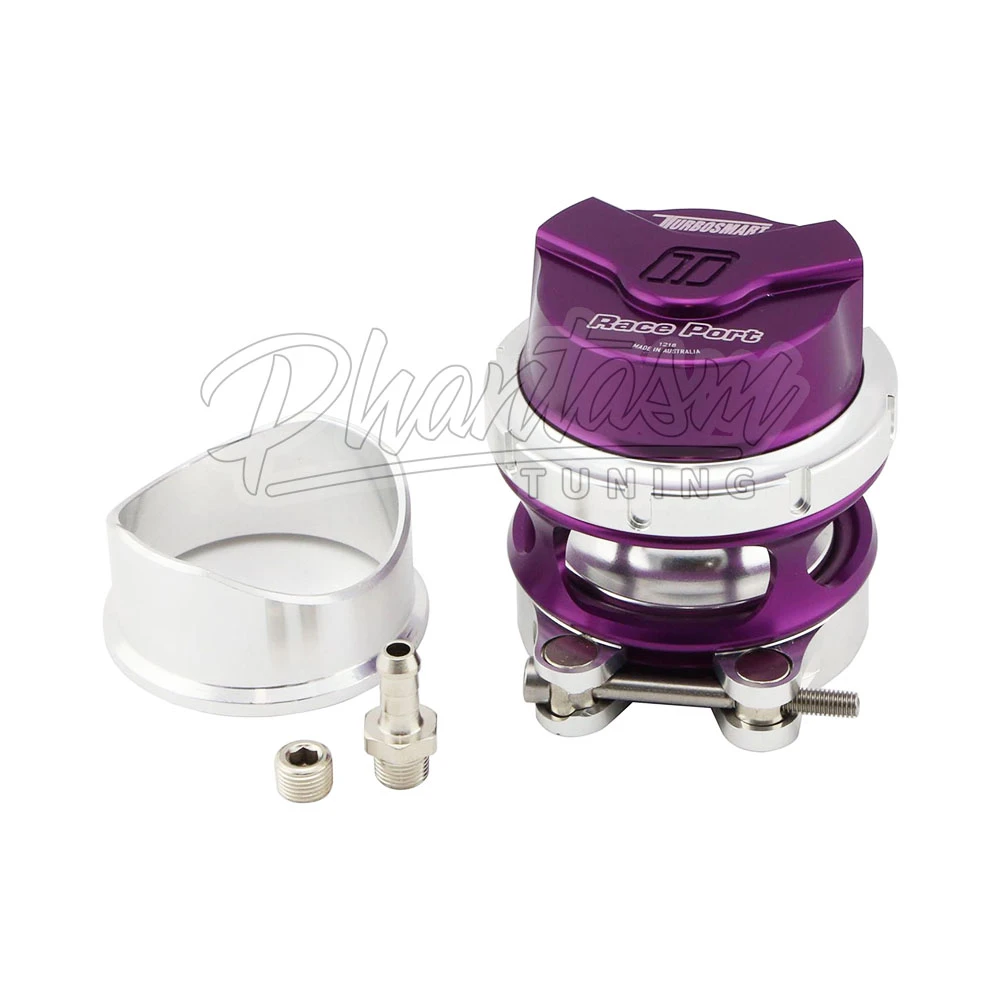

The Race Port is famous for being an amazingly small and light BOV for turbocharged competition level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM - making it the highest flowing BOV of it’s type on the market. A Blow-Off Valve, sometimes called a diverter valve or bypass valve, is a pressure relief valve that is mounted between the turbo and the intake manifold. It releases excess air pressure when the vehicle comes off throttle. A Blow-Off Valve is an essential part of a turbocharger system, as it prevents damaging turbo compressor surge that can be present on rapid throttle and/or engine load changes, it also increases the response of the turbocharger by not over-slowing the turbine. All Turbosmart Blow-Off Valves are made entirely from billet aluminum, so they will never crack and leak like cast or plastic units do. They also improve boost response from the turbocharger.
PRODUCT FEATURES:
* Vacuum fittings, profiled alloy weld flange, V-band assembly, and Blue Spring Rated -18 to -14 InHg (installed).
* Billet 6000 series aluminum construction.
* Quick release v-band collar for ease of installation and removal.
* 2.0 Inch inlet flows over 330 CFM.
* MILSPEC hard anodized valve guide and stem.
* Hi Temp Silicon Nomex diaphragm.
* Positive sealing valve seat.
* Twin 1/16" NPT pressure ports for convenient positioning.
* Collar secured cap for quick spring changes.
* 4 inHg to 26 inHg activation range.
* 5 user configurable corrosion resistant springs available.
* Valve position sensor option.
* Designed, manufactured and validated in-house at Turbosmart HQ.
---
FITS: UNIVERSAL APPLICATIONS
