Product Description

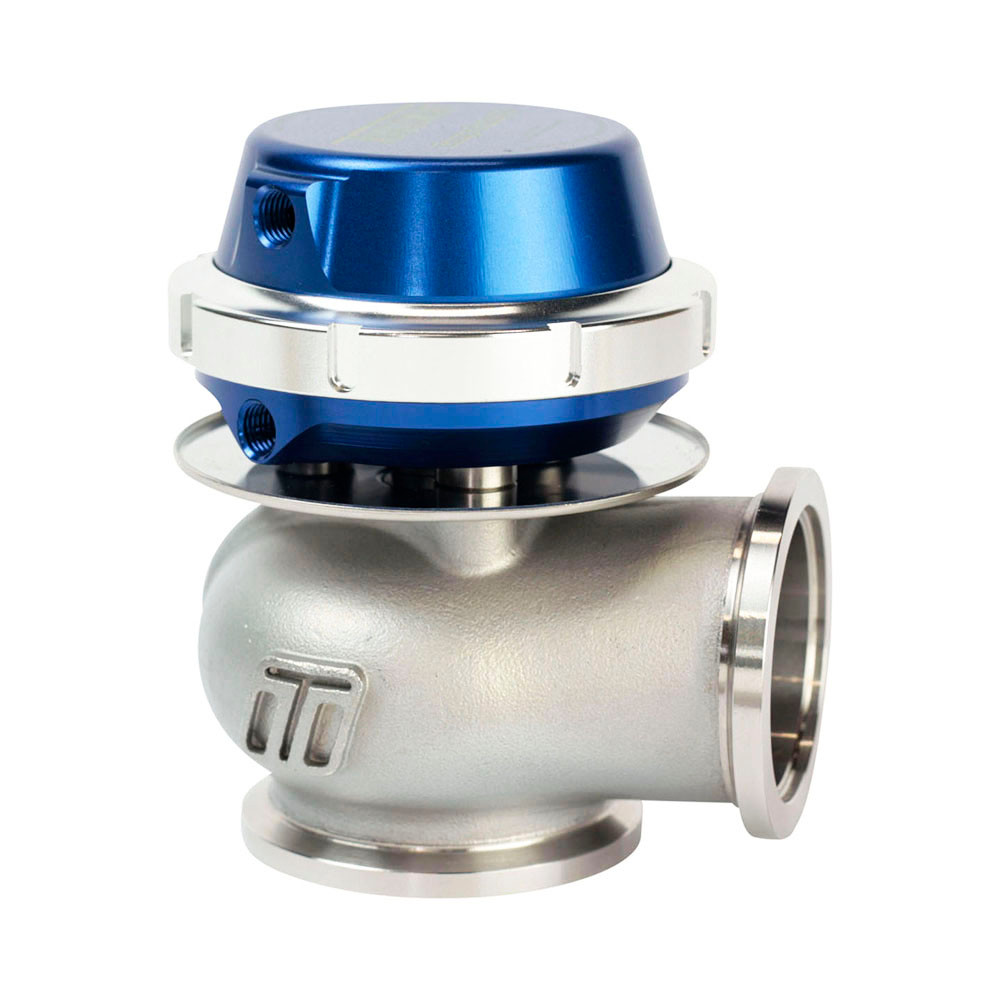

Turbosmart's Comp-Gate40 (40 MM) external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities. The revolutionary actuator housing is 25% smaller than previous designs and allows for easy spring changes (from 3 PSI to 26 PSI available) with our locking cap design and gives the ability to index the cap orientation in 12 different positions. Features Solid 1 Piece Coated Stainless Steel Valve and Silicon Nomex Diaphragm for true reliability and performance.

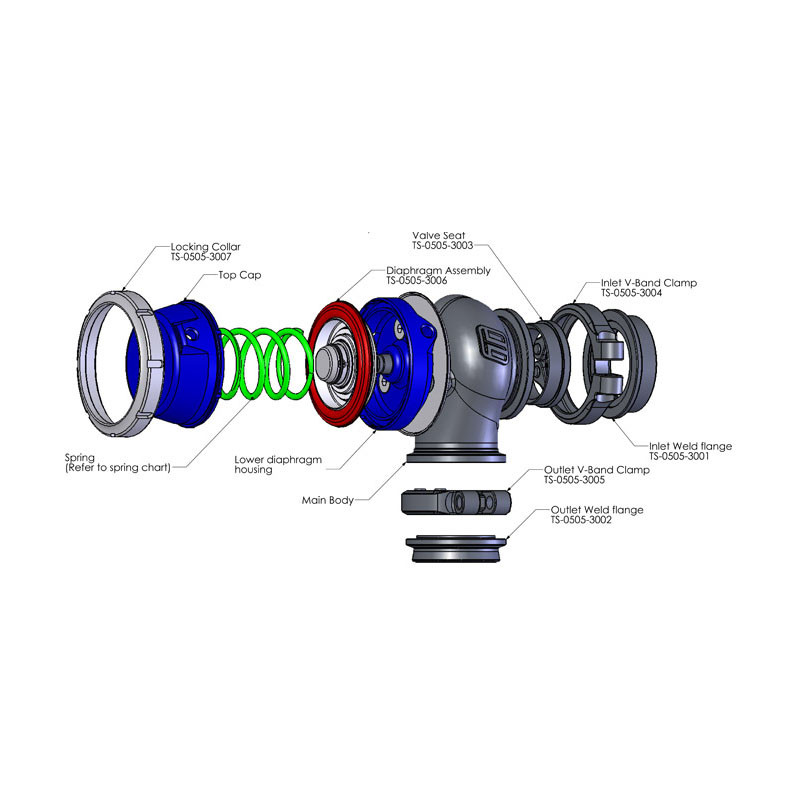

Supplied With: Inlet and Outlet Stainless Weld Flanges, Inlet and Outlet V-Band Clamps, 1/16 NPT Hose Barbs (5 MM), 1/16 NPT Port Blanking Plugs, Locking Collar Tool, Valve Seat, Brown/Purple 7 PSI Middle Spring and Brown/Pink 7 PSI Outer Spring (installed).
The most common reason for investing in an external wastegate is fitting an after-market turbo or better control of the boost and consequently the power output of your engine. Additionally, most large frame turbochargers are not equipped with internal wastegate systems. Most tuners will recommend an external wastegate for any engine producing 400 HP or more, as running high boost through a factory internal wastegate can overpower the actuator spring, limiting maximum boost level. Aftermarket external wastegates feature bigger inlet and outlet ports, higher pressure springs and bigger actuator diaphragms to effectively control high boost pressure. They are designed and manufactured using the latest technologies.
Product Features:
* 40 MM Valve Size.
* 14 PSI Spring Pressure.
* V-Band Clamp Mounting System to Suit 1.75 Inch O.D. pipe.
* Locking Collar for Compact Size and Easy Spring Changes.
* Blue Anodized Finish or Black Anodized Finish.
---
FITS: UNIVERSAL APPLICATIONS
