Product Description

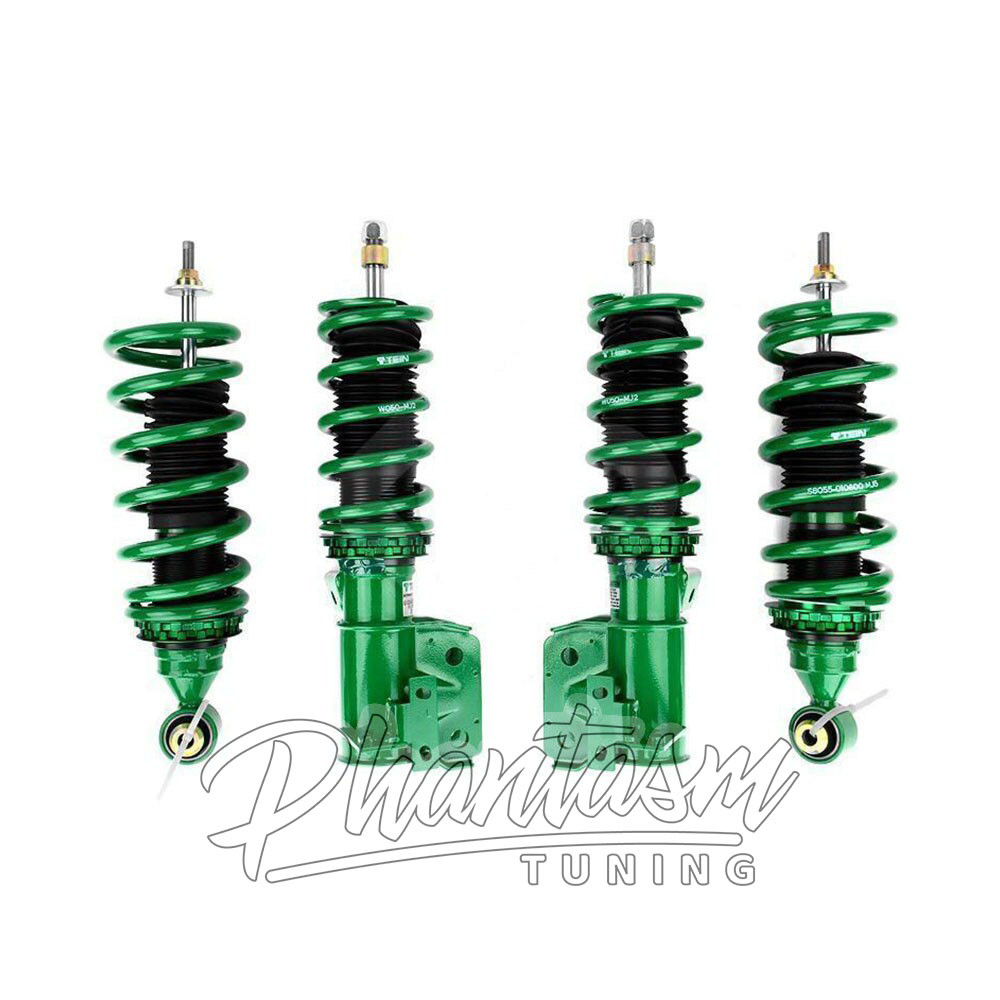

The Street Basis Z damper is the evolution of the popular BASIC coilover. Developed to provide a sporty ride feeling and aggressive stance. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Vehicle ride height is adjustable via the ZT coated threaded sleeve. Updated internal components and external coatings increase durability and product life. Street Basis dampers are great for daily driving and spirited driving for all types of drivers. Made in Japan under strict quality control standards and developed by highly trained suspension engineers.
Product Features:
* OEM Front Upper Mount.
* OEM Rear Upper Mount.
* No Damping Force Adjustment.
* Steel Construction.
* Twin Tube internal construction.
* Larger piston diameter for strut type front and rear. (22 MM).
* Ride Height adjustable via spring seat.
* Powder coated damper body.
* Non-Welded ZT coated Adjustment Tube.
* Full-Length Dust Boots.
* 1 Piece Aluminum Spring Seat with Delrin Thrust Washer.
* Available for Overhaul.
* 1 Year Manufacturer's Defect Warranty.
---
* HEIGHT ADJUSTABLE (YES) / DAMPING CONTROLS (NO) / PILLOW MOUNTS (NO)
* FRONT RIDE HEIGHT ADJUSTMENT RANGE: -4.10 INCH TO -0.70 INCH
* REAR RIDE HEIGHT ADJUSTMENT RANGE: -3.10 INCH TO -0.70 INCH
* FRONT SPRING RATE: 10.0 KG
* REAR SPRING RATE: 4.0 KG
* FRONT PILLOW MOUNT / CAMBER PLATE: NO
* REAR PILLOW MOUNT: NO
---
INSTALLATION TIME: 5-6 HOURS
---
FITS:
* 2009 ACURA TSX (2.4L, 3.5L) SEDAN, WAGON
* 2010 ACURA TSX (2.4L, 3.5L) SEDAN, WAGON
* 2011 ACURA TSX (2.4L, 3.5L) SEDAN, WAGON
* 2012 ACURA TSX (2.4L, 3.5L) SEDAN, WAGON
* 2013 ACURA TSX (2.4L, 3.5L) SEDAN, WAGON
* 2014 ACURA TSX (2.4L, 3.5L) SEDAN, WAGON
