Product Description
The KTuner Flash & Touch allow advanced tuning and datalogging for the Honda / Acura factory ECU. The KTuner application allows fuel, ignition, VTEC, fuel & ignition trims, and other ECU programming functions available on engine management systems. In addition to these standard features - the KTuner Flash and Touch are capable of boost control (without requiring ECU modification) and Flex Fuel tuning.
* KTuner Flash: The KTuner Flash is a simple port-flash tool that allows programming and data logging while connected to a laptop. The KTuner application allows programming of fuel, ignition, VTEC, fuel & ignition trims, boost control, and Flex Fuel tuning.

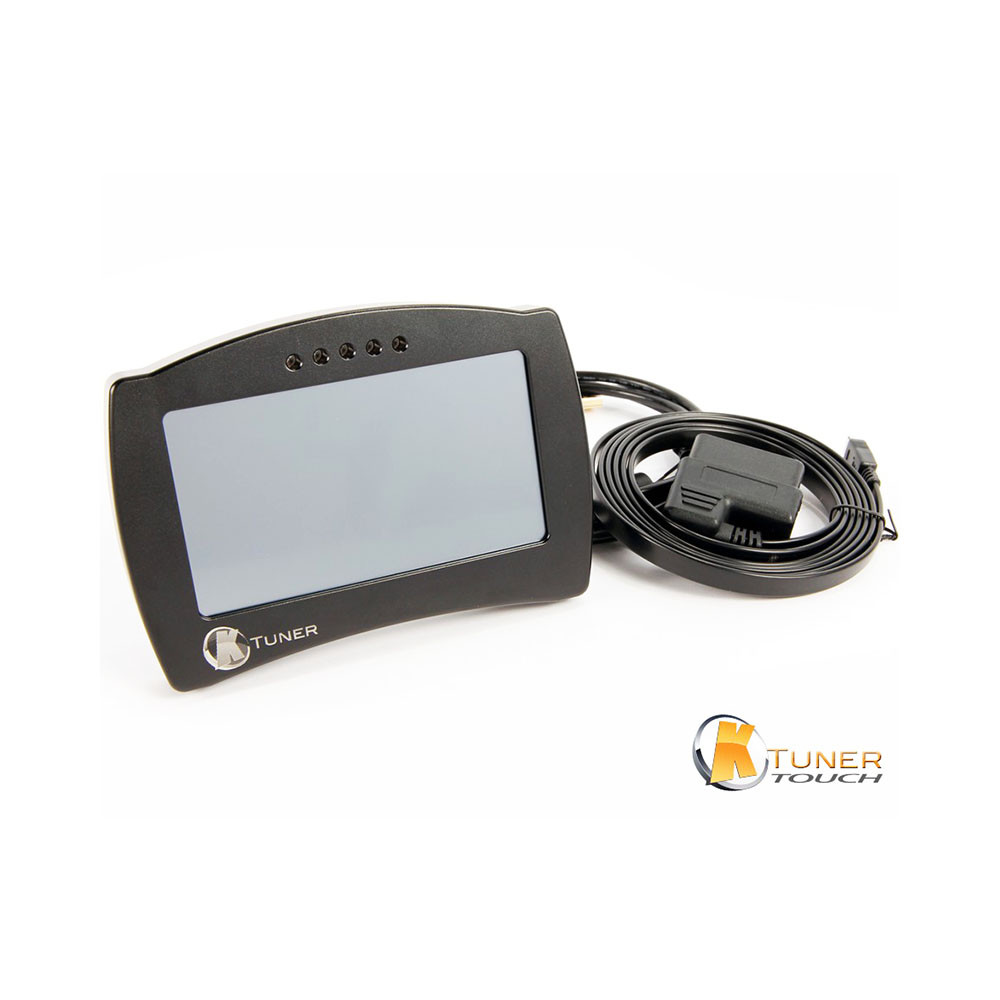

* KTuner Touch: Like the KTuner Flash - the Touch allows the same ECU programming with the included KTuner application. However, the innovative full-color touchscreen display, mounted in a sturdy machined aluminum enclosure, also allows standalone datalogging (for review using the included PC application), map switching, and functions as a real-time gauge display with programmable shift lights. The KTuner Touch attaches to the OBD port to view live engine parameters, and only needs to be connected when the ECU is flashed. The KTuner Touch includes a t-slot mounting bracket to use popular t-slot mounts.
* KTuner Flex Fuel Tuning: The KTuner Flash and Touch are capable of Flex Fuel tuning with the optional Flex Fuel converter and a Flex Fuel sensor. Based on Flex Fuel content, the ECU automatically adjusts fuel injection based on pre-set stoichiometry. This is the same strategy used by factory Flex Fuel ECUs. In addition, configurable ignition and boost trims based on ethanol content are available to raise ignition and boost targets based on Flex Fuel content. Fuel injection trims are also available based on ethanol content which provides a strategy for providing additional injector pulse width if injection pressure drops from elevated manifold pressures in turbocharged applications. A compatible fuel system is required. The Flex Fuel converter requires wiring into a +12V ignition source, chassis ground, the flex sensor signal, and into the factory ecu. We recommend using the Fuse Block Connector for the +12V ignition source.
NOTE: This product is not designed or intended for pollution controlled vehicles. In the United States, the use of this product is regulated by the Environmental Protection Agency under the Clean Air Act. Use of this product must be used in accordance with the Clean Air Act, and any other Federal, State, or Local mandated regulations. The use of this product must only be used on a vehicle in sanctioned competition events and may not be used on public roads, streets, or highways.
Product Features:
* This unit is locked to one ECU and allows you to alter the settings in your ECU.
* Return to factory at any time and unlock the unit to resell.
* This allows data logging and reflashing right over your factory OBD2 port!
* Store multiple tunes, including factory. Flash stored tunes directly from our TunerView App!
* Note: Tunes are still created with the KTuner PC software.
* On Board Logging, record data logs without the need for a laptop.
* Bluetooth connectivity for peripherals and the TunerView Android app.
* Extended data parameters available on certain vehicles.
* Diagnose any Honda/Acura CAN vehicle, even when already locked to a vehicle.
* KTuner uses USB connectivity for fast data transfers.
Additional Features:
*** (V1, V2) *** Programs ECU through included Ktuner Windows application.
*** (V1, V2) *** Fuel, ignition, & VTEC control.
*** (V1, V2) *** ECT, IAT, individual cylinder, & tip in fuel & ignition trims.
*** (V1, V2) *** Boost control without ECU modification.
*** (V1, V2) *** Flex Fuel fuel, ignition, & boost control.
*** (V1, V2) *** Laptop based datalogging.
*** (V1, V2) *** 2-Step launch control.
*** (V2 Touch Only) *** Onboard datalog storage. Does not require laptop to log.
*** (V2 Touch Only) *** Map switching.
*** (V2 Touch Only) *** Full color touchscreen.
*** (V2 Touch Only) *** Gauge display.
*** (V2 Touch Only) *** Programmable shift lights.
---
NOTE: Your Type-R ECU Must Be Unlocked In Order To Tune!
---
How do I order?
* Do Not Send Your ECU In Unless You've Scheduled It With Us First!
* Only Send The ECU, Not The Plastic Cover.
* Do Not Use Packing Peanuts That Aren’t Static Safe.
---
KTunerFlash V1.2 is now available for $699 including unlock and overnight shipping in the United States.
KTunerFlash V2 is available for $899 including unlock and overnight shipping in the United States.
The cost of unlocking separately if you don’t purchase as a kit is $250 and that includes return overnight shipping in the United States.
Email Info@KTuner.com to schedule your ECU to be sent in.
You will need to fill out our form, submit a copy via email and one printed included in the package with your ECU.
http://www.KTuner.com/guides/KTunerTypeR.pdf
Kits can be ordered with the unlock included directly through dealers who offer it.
If you ordered through a dealer you also need to send them a copy of your form so they can forward it to us as an order confirmation.
The unlock service can also be purchased via Paypal and details will be given when you’re scheduled.
---
How long will it take to get my ECU back?
* We will be able to get all scheduled incoming ECUs out the same day they’re received.
Who will be supported?
* We plan to support all FK8s worldwide, and also FK2 owners as well.
---
What tunes will be included?
* The stage 0 tune adding +20 WHP and +35 WTQ.
* The stage 1 tune adding +50 WHP, more in the low-midrange, and +65 WTQ.
* The stage 1 dampened low end tune adding +50 WHP, more in the low-midrange, and dampens low RPM torque.
* The stage 1 dampened first gear tune adding +50 WHP, more in the low-midrange, and 65wtq. This tune dampens first gear torque to help with traction.
* The multi-stage 1 tune is close to factory in comfort mode, stage 0 in sport mode, and stage 1 in +R mode making it easy to switch between tune levels with the mode button.
* 91+ Octane required, 93 suggested.
* Our stage 2 is already in development.
---
Can I get custom tuning done?
* Yes. We have included the necessities of tuning to start off this platform without an overwhelming amount of tables. We will be including additional tables with updates.
---
Flash back to factory or between tunes at any time!
---
Dyno Results:
Stage 0: +20 WHP, +35 WTQ
Stage 1: +50 WHP, +65 WTQ
---
NOTE: Your Type-R ECU Must Be Unlocked In Order To Tune!
---
FITS:
* 2017 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO ENGINE
* 2018 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO ENGINE
* 2019 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO ENGINE
* 2020 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO ENGINE
* 2021 HONDA CIVIC TYPE-R (FK8) 2.0L TURBO ENGINE
