Product Description

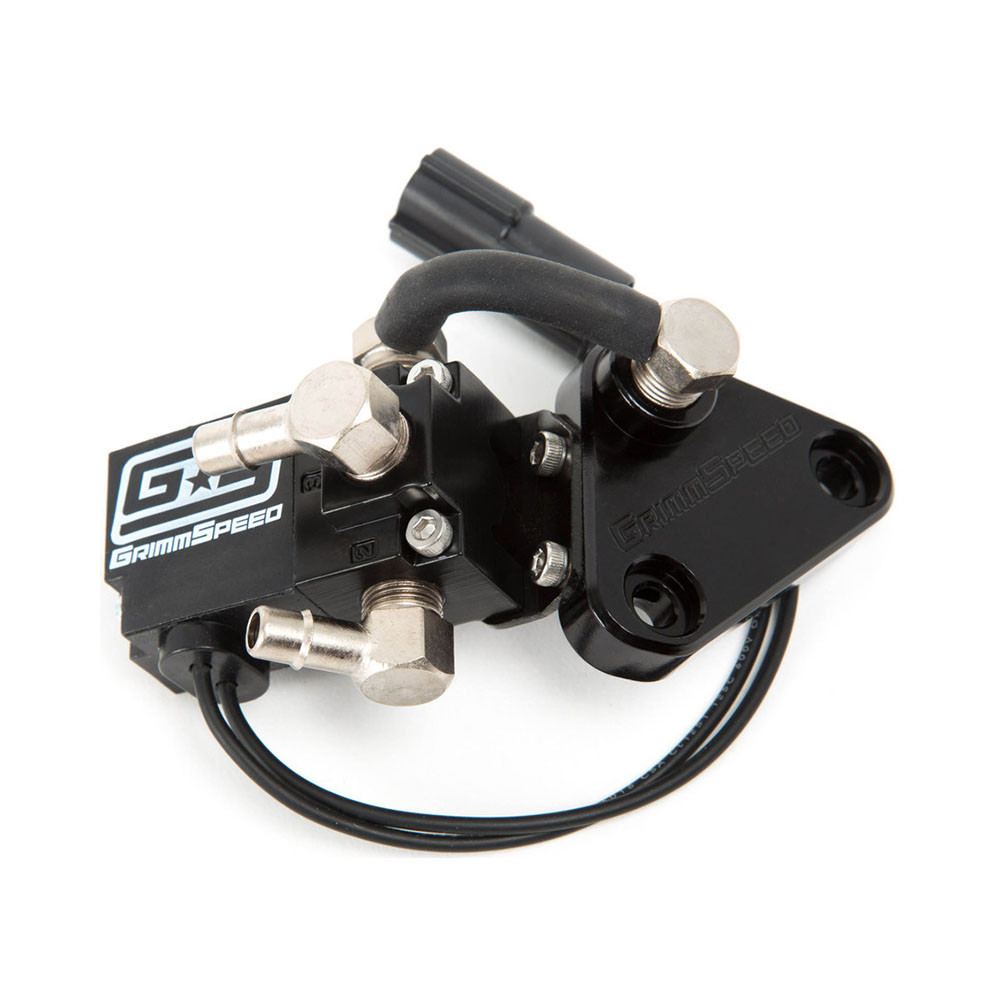

The Grimmspeed 3-Port Electronic Boost Solenoid has been a treasure to the turbocharged world of sport compact drivers. Not only has Grimmspeed designed this solenoid to work with our factory ECU (requires tuning), but this solenoid will outperform the factory solenoid by flowing better and reacting faster without having to use more power from the ECU. Additionally, Grimmspeed designed their electronic boost controller with a bracket to bolt into the existing provision in your vehicle, and it will come with an OEM-like connector to be a direct plug and play unit which eliminates the need for additional splicing. This also makes it possible to return your vehicle back to stock if you plan on doing so.
This particular application comes from the factory equipped with a 2-port solenoid that is mounted directly to the plastic turbo inlet and it interfaces with an O-ring feature rather than a vacuum hose. Grimmspeed highly anticipated the redesign of this system to deliver a quality boost control solenoid that will deliver fast and effective results/
When compared to the factory 2-port system, the Grimmspeed 3-Port Boost Control Solenoid works by interrupting the boost signal that travels from the turbo to the wastegate. That boost is redirected back into the turbo inlet and re-ingested by the turbo using their machined adapter. The factory MAF sensor will measure that air and will expect your motor will use it during combustion rather than venting it back into the atmosphere. The factory configuration will bleed the signal from between the turbo and the wastegate that creates a slower reaction with less precision.
Installation should be simple and straightforward since Grimmspeed designed the bracket to bolt right onto your factory solenoid provision, and Grimmspeed designed this solenoid with OEM like wiring connectors to eliminate the need for extra wiring or splicing and to be a direct plug and play type of installation.

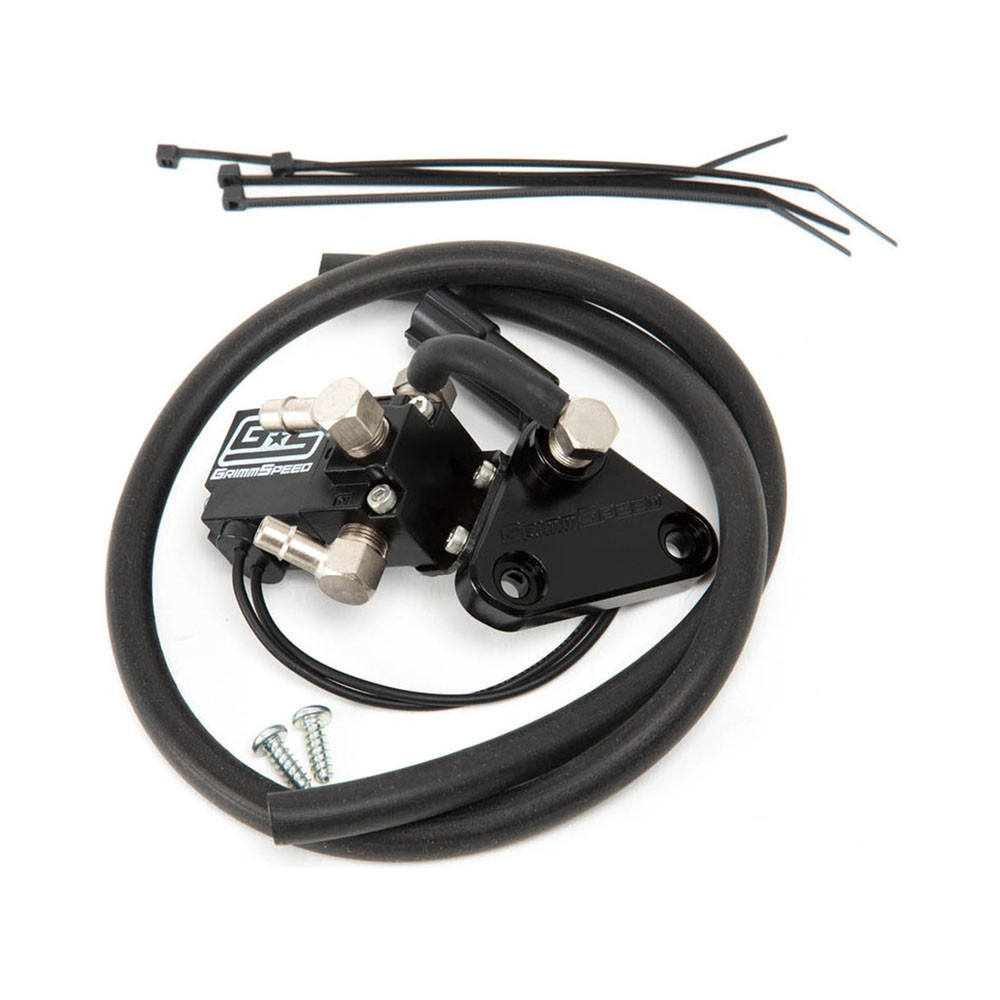

Hardware, vacuum hose, as well as zip ties, will be included to make this 3-Port Electronic Boost Controller to be ready for the installation. Please note that because it is a device that alters your boost levels, that a professional tune will be required to make this BCS ready for the installation.
Product Features:

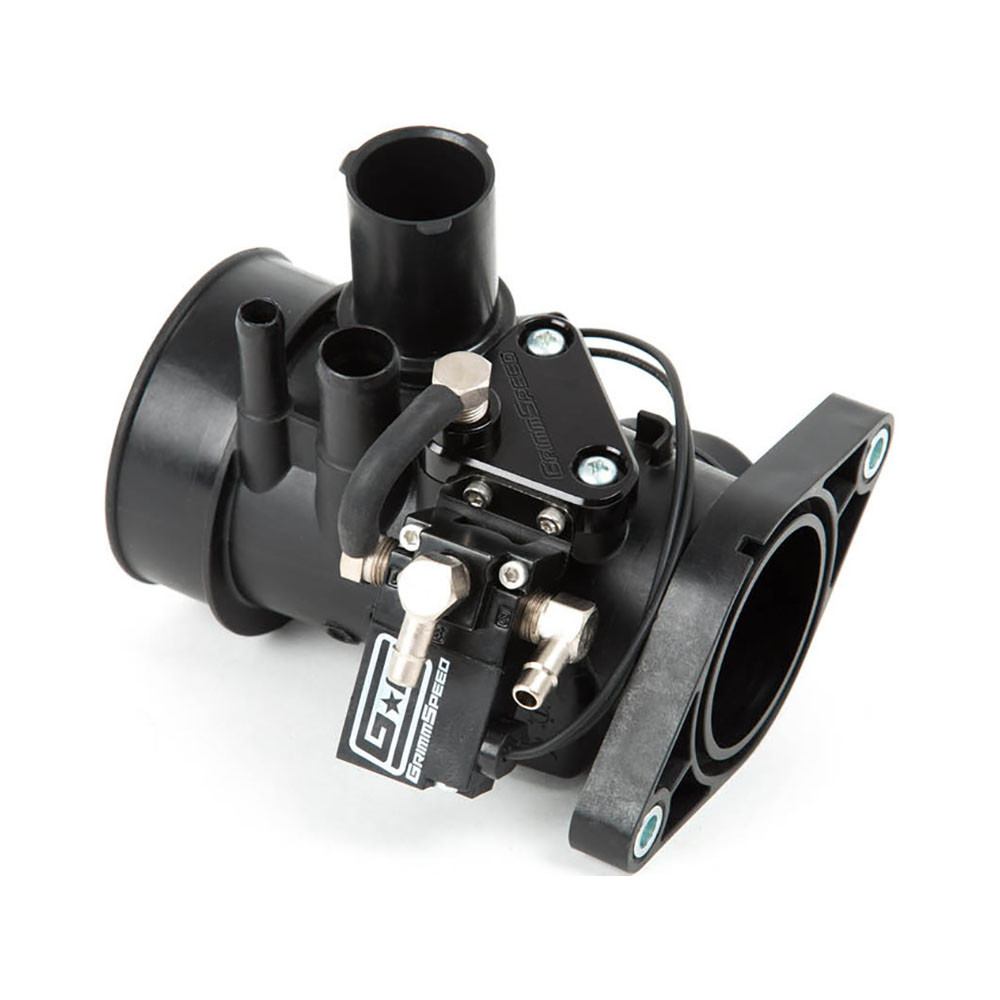

* Custom Machined Adapter - Makes use of the factory inlet recirculation port, instead of blocking it off.
* Black Anodized Finish - Protects the assembly from corrosion in an extremely demanding environment.
* 1/4 Inch Barbed Fittings - Matches the factory turbo and wastegate hose size.
* 3-Port Solenoid - Proprietary internal modifications prepare the solenoid for extreme conditions below the vehicle.
* Plug-n-Play Wiring Connector - Plugs directly into the factory wiring harness with no modification required.
* Compact Design - No need to mount the solenoid elsewhere in the engine bay, increasing complexity and hose length.
---
FITS:
* 2015 SUBARU WRX (2.0L) F20A ENGINE
* 2016 SUBARU WRX (2.0L) F20A ENGINE
* 2017 SUBARU WRX (2.0L) F20A ENGINE
* 2018 SUBARU WRX (2.0L) F20A ENGINE
* 2019 SUBARU WRX (2.0L) F20A ENGINE
* 2020 SUBARU WRX (2.0L) F20A ENGINE
* 2021 SUBARU WRX (2.0L) F20A ENGINE
