Product Description

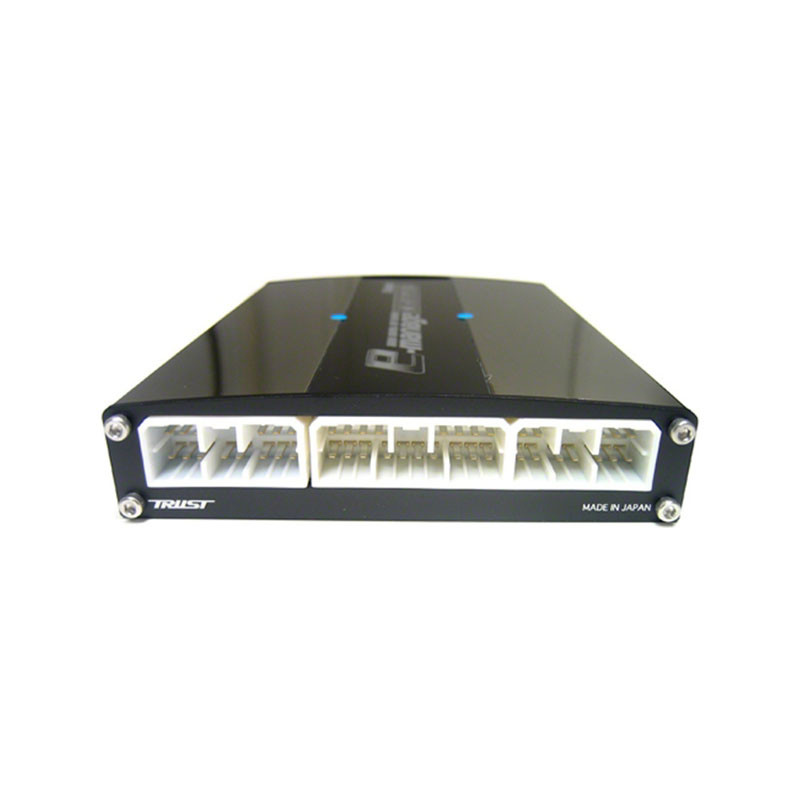

The GReddy e-Manage Ultimate is as close to a stand-alone management system as you can get while maintaining the best features of a "piggy-back" engine management; an economical price, the usage of existing sensors, the ability to easily alter factory settings and not having to tune from scratch. But unlike the original e-manage, the Ultimate is more refined, requiring specific application usage (which we are constantly adding application updates that you can download FREE via greddy.com, Tech Web Pages.)
The benefit of this is, the included PC-based USB "Ultimate Support Tool" allows for even finer tuning capabilities, improved flexibility in fuel & ignition control and adds impressive data-logging qualities to make tuning quicker and easier. The increased number of input and output ports of the Ultimate, along with new built-in adapters add many new options to the unit.
In addition to standard e-manage airflow-based adjustments, the Ultimate version includes new and upgraded features. The Parameter Set-up, tab menu format of the Ultimate has improved direct Map control for adding and subtracting Fuel and Ignition. The ability to switch between 2 preset tuning Maps (i.e. Street or Race program) via externally mounted toggle switches. There are Maps for Individual cylinder adjustment for both Fuel and Ignition. There are also options to convert injection and ignition systems (i.e. group or sequential injection and group or individual fire ignition.)
An Airflow Output Map option even allows for airflow meter elimination. And when used with a wideband A/F Meter, the Air Fuel Target Map can self-tune an Injector base tuning Map, to speed up initial tuning. There are also built-in Boost, Rev and Speed Limiter-Cut features. To create super smooth operation, there are various fine tuning Correction Maps to adjust for Throttle Acceleration, Vehicle Speed, Water Temp, Intake Temp, Auto Trans Shift, Anti Engine Stall, and Idle. To further aid in tuning, e-Manage Ultimate’s improved integrated Monitoring, Map Tracing and Data logging features far exceed any other piggyback controller on the market. Even when not connected to the software, 8 channels of data logging (at 20 msec intervals) can be recorded and stored to be reviewed later. With the Support Tool connected, over 30 channels can be covered.
Other new features include: Improved RPM recognition, Warning Settings, Password Protection for individual tuning Maps, NVCS (Nissan), VTEC (Honda), O2 Feed-back, Clean Fouled Plugs, and numerous others in future updates. Ideal for optimizing and fine-tuning for performance products like Exhaust, Air Intake, Intercoolers, Boost Controllers, and Turbochargers, the e-manage Ultimate fills the gaps between conventional piggyback and expensive stand-alone engine managements. All installation and tuning should only be made by a trained technician with proper air/fuel monitoring tools. (Some or all functions may not be compatible with some applications.)
Product Features:
* USB Port - improved communications & better real-time data and monitoring
* Toggle Switch - switch between maps
* Serial port - monitor and data logging
* Switch port - Data log & Ign. Cut activation
* Option 1 & 2 - Connectors for sensors
* Warning Setting
* A/T Shift Compensation
* Channel Change
* Rev limiter cut
* Acceleration injection Map
* Individual cylinder fuel & ignition adjustment maps
* Speed correction map
* Coolant temperature correction map
* Air intake temperature map
* A/F target value map
* Ignition adjustment map
* Acceleration ignition map
* Nissan Valve control map
* Analog output map
* Auxilary output map
* Idle stabilization map
* RPM signal recognition
* Fouled plug feature
* Data logging
* Text file save feature
* Knock monitor (future feature)
* Ignition timing display (future feature)
---
FITS: UNIVERSAL APPLICATIONS
* Requires harness kit, sensors, etc.
* Ultimate complete harness kit & supplement harness kit also available.
* Functions vary per application.
* ONLY Vehicles Suported by Software.
* GReddy Ultimate does NOT come with the software disc. For the latest update/software, please visit GReddy's Tech Page.
