Product Description
*** (255 TQ / 340 HP) ***

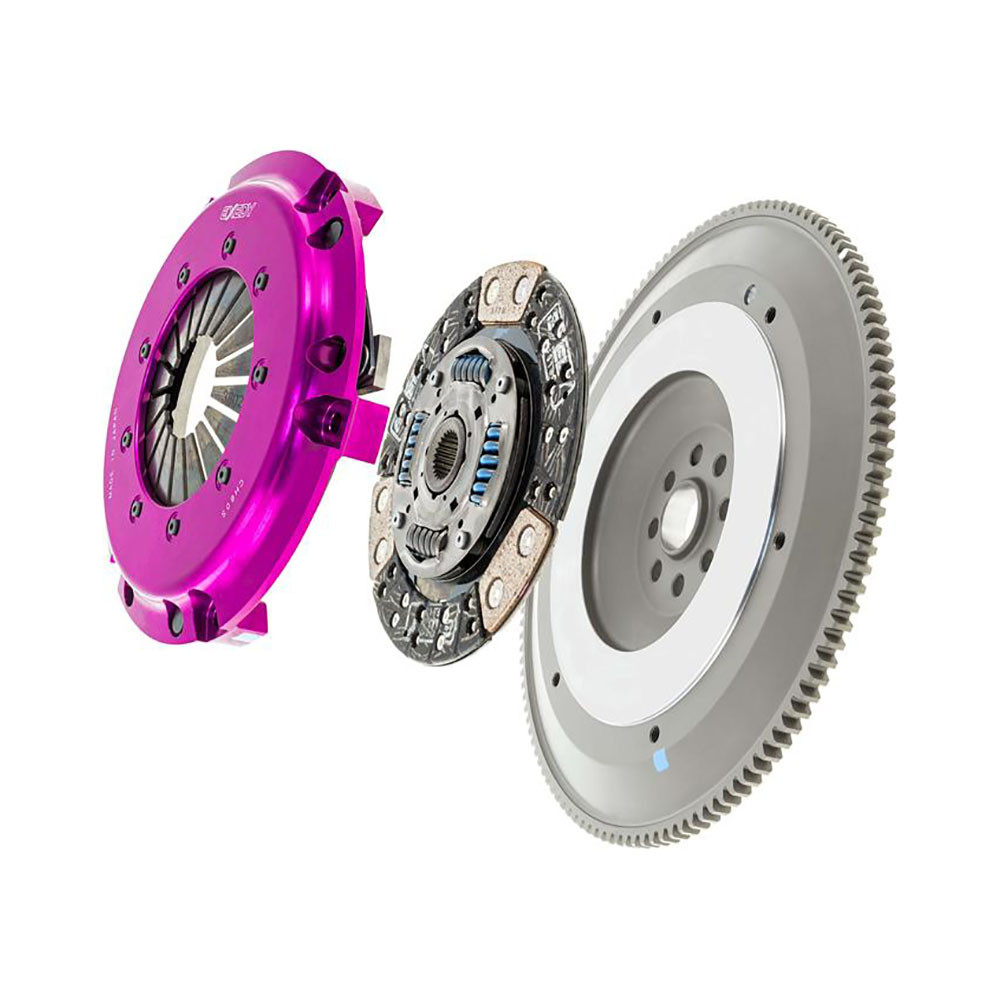

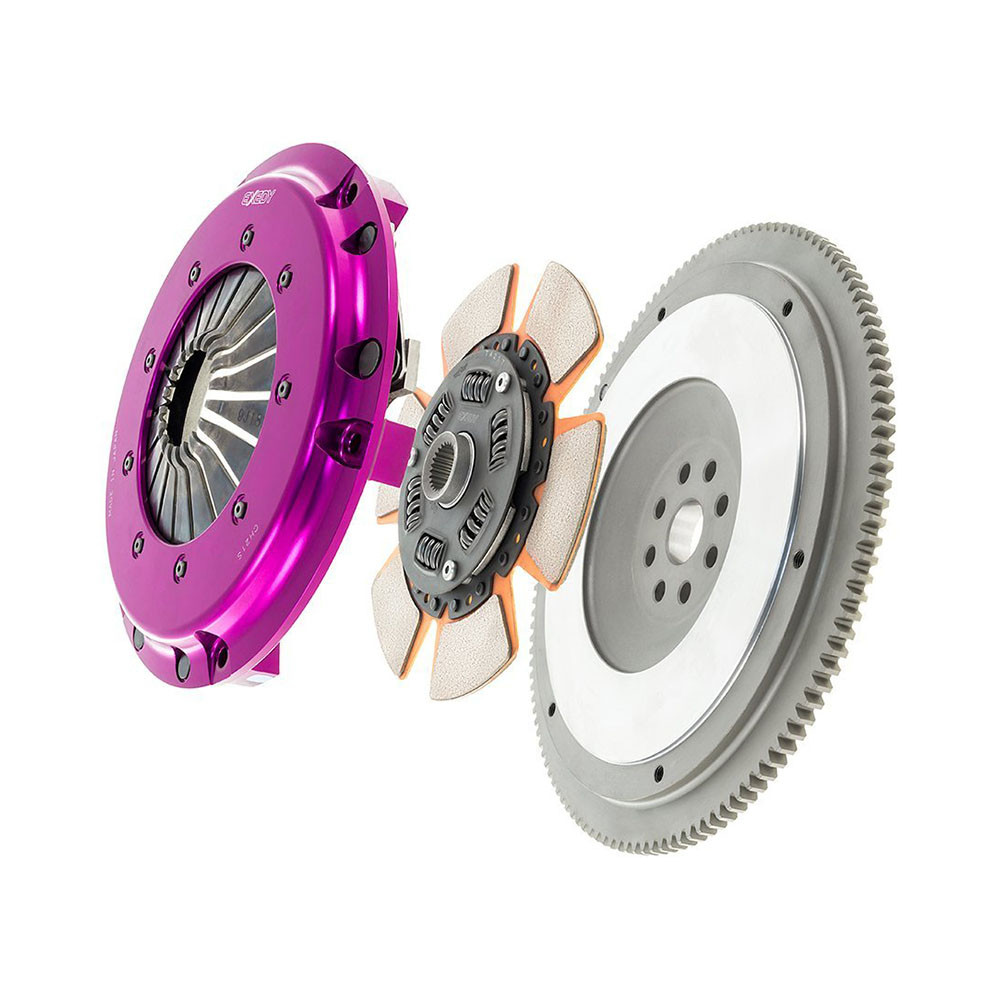

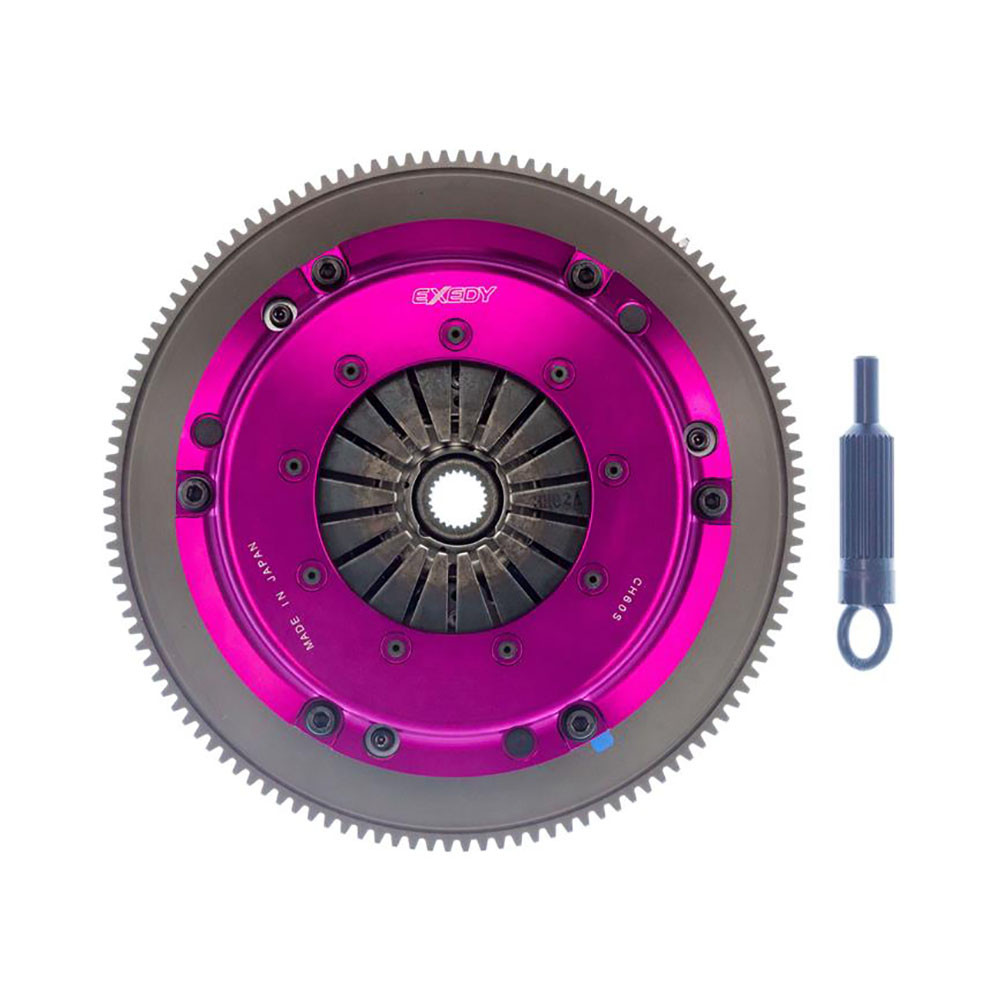

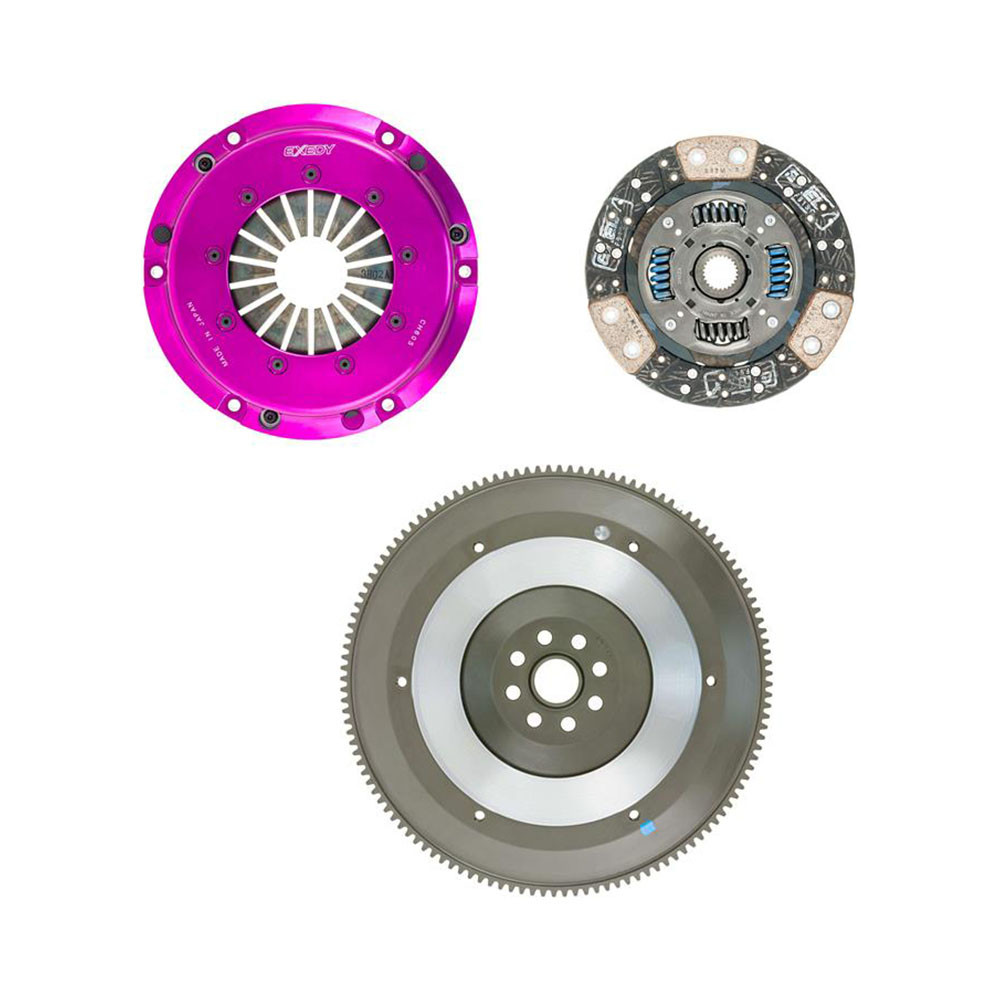

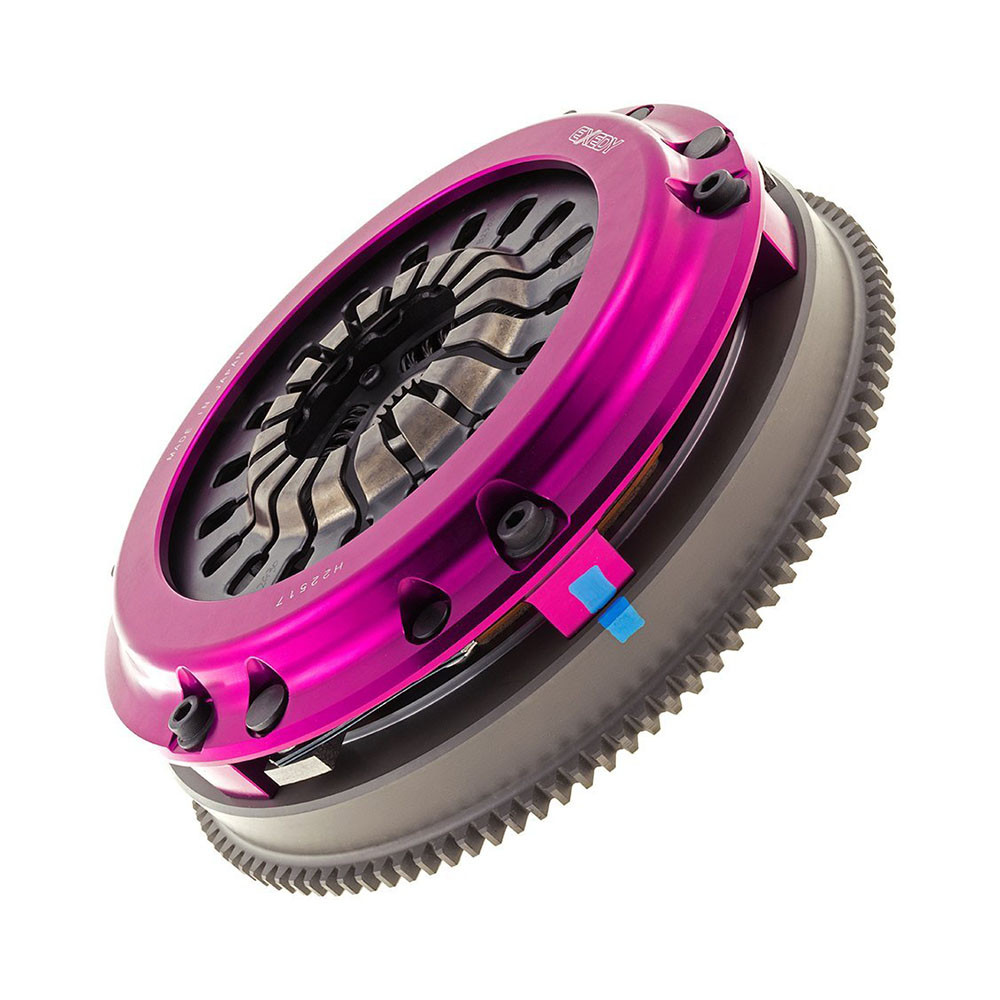

The EXEDY Hyper Single Series clutch is engineered to optimize the performance of cars that are moderately modified, but do not require the clutch capacity of a multi-plate clutch. Similar to our multi-plate clutches, it has a purple anodized, forged aluminum cover. The aluminum cover is stiffer than a stamped cover and therefore allows a higher lever ratio to maintain the pedal efforts at a reasonable level. There is no clamp load deflection as found in a pressed metal type cover. Additionally, the pressure plate features a series of turbine-like, air flow enhancing vanes that keep the clutch cooler under extreme operating conditions to improve wear life.
All Hyper Single clutches come with a chromoly steel flywheel and are normally supplied with a 6-puck cerametallic facing and a spring center damper disc assembly. However, on select vehicles, the new VF (Various Friction) disc may be offered. The chromoly flywheel is lighter than OEM for improved engine response, and a lighter overall assembly. The disc is generally smaller and thinner than the OEM disc making for lower inertia and therefore quicker, easier shifting and less wear and tear on the transmission synchros. The higher clamp load and cerametallic friction facings give approximately twice the holding torque of the OEM clutch and higher than other single disc clutches.
* 6-Puck Cerametallic Disc - High friction coefficient, low wear, and a special heat resistant material [T5001] has been applied to enable the clutch size to be reduced which in turn lowers mass inertia and improves shift responses for faster gear changes particularly in racing applications. Durability is improved with the use of a stronger, smaller damper disc, designed especially for the Hyper Single clutch.
* VF (Various Friction) Disc - The VF enables the driver to operate the clutch through an easy-to-feel half engagement thanks to the Ultra Fiber friction material all while having a high heat dissipation and torque capacity due to the integrated metal facing. Furthermore, pedal effort has been drastically reduced and improved by the re-engineering and re-designing of the engagement point with newly developed cushioning plates.
* SFI Certification - All EXEDY Stage 1 Organic, Stage 2 Ceremetallic and Lightweight Flywheels carry SFI 1.1 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports.
Product Features:
* VF Series, Sprung Center Disc.
* Push Type Clutch Cover.
* Alignment Tool and Bearings.
* Includes Chromoly Steel Flywheel.
* SFI Approved.
---
* Torque Capacity: 255 TQ
* Horsepower Capacity: 340 HP
* Clamp Load: 2203 LBS
---
PARTS REQUIRED: ** For use w/ Hyper Installation Kit (FJAK102). ** Sold Separately.**
---
INSTALLATION TIME: 7-8 HOURS
---
FITS:
* 2013 SCION FRS (2.0L) ENGINE
* 2014 SCION FRS (2.0L) ENGINE
* 2015 SCION FRS (2.0L) ENGINE
* 2016 SCION FRS (2.0L) ENGINE
FITS:
* 2013 SUBARU BRZ (2.0L) ENGINE
* 2014 SUBARU BRZ (2.0L) ENGINE
* 2015 SUBARU BRZ (2.0L) ENGINE
* 2016 SUBARU BRZ (2.0L) ENGINE
* 2017 SUBARU BRZ (2.0L) ENGINE
* 2018 SUBARU BRZ (2.0L) ENGINE
* 2019 SUBARU BRZ (2.0L) ENGINE
* 2020 SUBARU BRZ (2.0L) ENGINE
* 2021 SUBARU BRZ (2.0L) ENGINE
FITS:
* 2017 TOYOTA 86 (2.0L) ENGINE
* 2018 TOYOTA 86 (2.0L) ENGINE
* 2019 TOYOTA 86 (2.0L) ENGINE
* 2020 TOYOTA 86 (2.0L) ENGINE
* 2021 TOYOTA 86 (2.0L) ENGINE
