Product Description

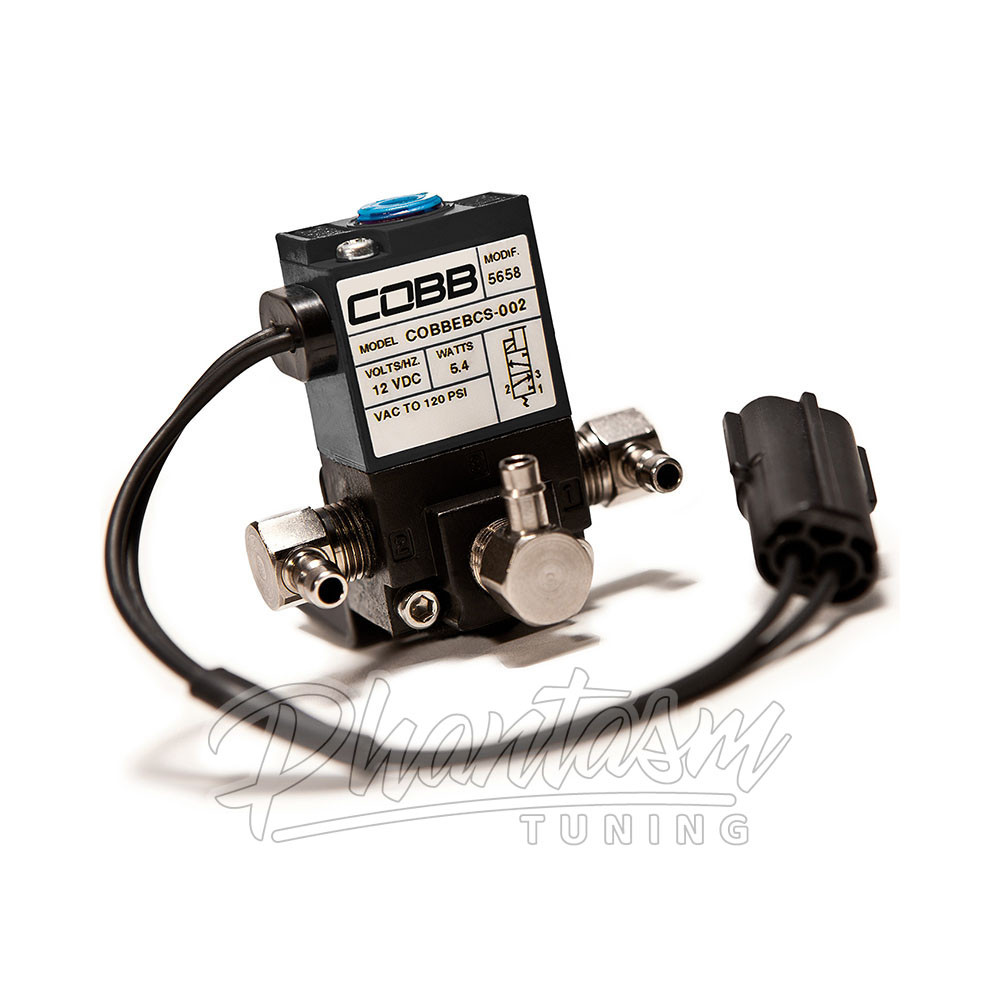

The COBB 3-Port Boost Control Solenoid (BCS) adds the flexibility and precision needed for properly controlling boost via the factory ECU. Many upgrades to the turbocharging system (such as larger turbochargers and external wastegates) require the increased performance, reliability, flexibility, safety and installation options that the COBB 3-Port BCS provides.
---
CUSTOM TUNING REQUIRED!! Please contact your preferred Protuner in order to safely utilize this part!
The COBB 3-Port Boost Solenoid is an excellent upgrade for modern turbocharged vehicles, enabling precise boost control in a tidy package that is easy to install and tune. Our BCS will eliminate boost fluctuations inherent in OEM boost control systems, providing the necessary stable and repeatable boost control required for accurate tuning and consistent performance. The COBB BCS is equally capable of providing stable boost control at stock boost levels as well as extremely high boost levels associated with big-power builds, with an operating range of up to 120psi.
The COBB Tuning 3-Port BCS features 1/8 Inch low-profile barb fittings to keep the unit compact, and are nickel coated for corrosion resistance. Optional 1/4 Inch nickel plated fittings are also available separately. Viton spools and seals are used throughout for long life and lubricated with Dow Corning silicone grease. The manual override port is sealed with an O-ring, the wiring harness is sealed to the casing using a waterproof grommet and the solenoid wires are ultrasonically welded to the coil, making the device waterproof and safe to wash.

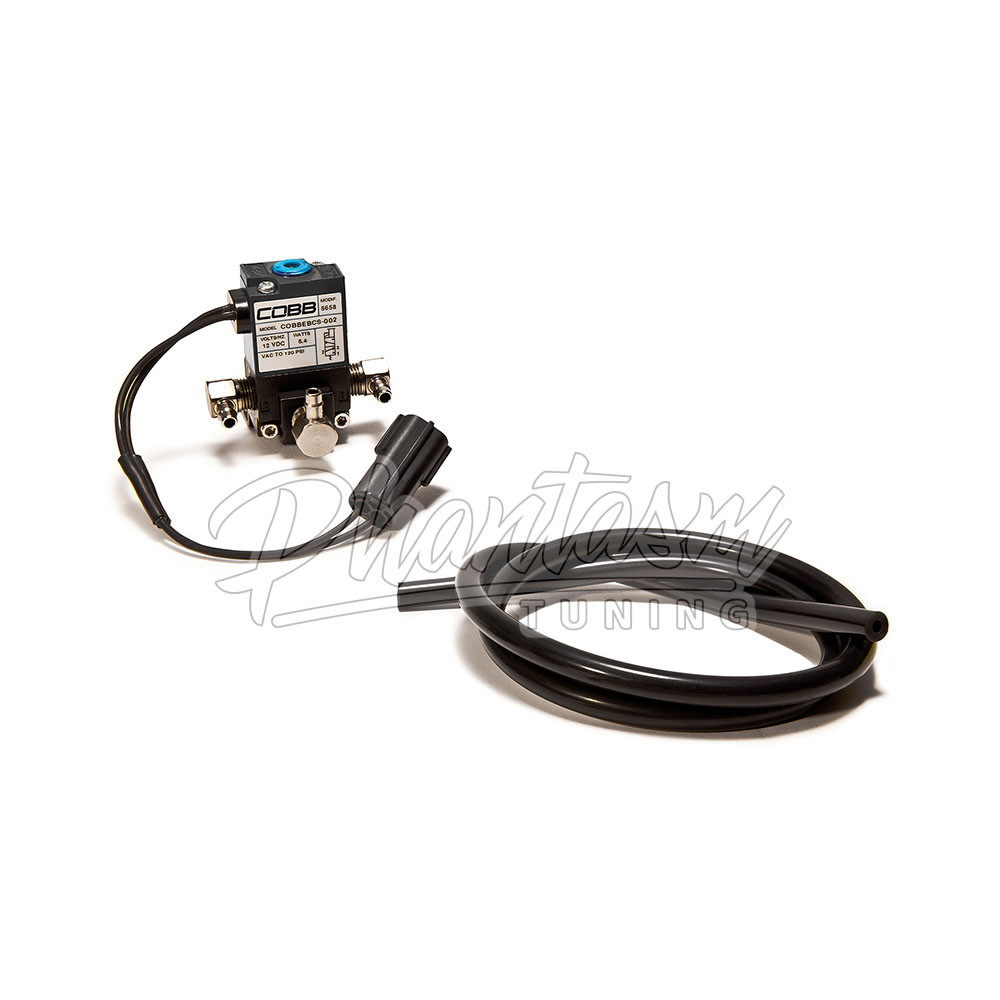

COBB Tuning has made the COBB 3-Port BCS installation as simple as possible. It mounts in the stock location and plugs directly into the stock wiring harness, making the physical install and electrical connection as straightforward possible. The BCS comes with a custom aluminum mounting bracket, stainless steel hardware, the necessary boost-line to complete all connections and zip-ties to route the boost-line neatly through the engine bay. The install instructions are easy to understand, with photographs and illustrations to guide you through the installation process, and include routing instructions for both internal and external wastegate configurations.
The COBB Tuning 3-Port BCS is the ultimate electronic boost control device for modern turbocharged applications, designed with outstanding boost control, engineered for consistent performance and extended service life, and configured for easy installation. Get your boost under control and Access the Potential of your turbocharged MAZDASPEED today!
Product Features:
* Accurate and Consistent Boost Control.
* Plug and Play 18-Gauge Wiring Harness.
* 1/8 Inch Nickel Plated Barbed Fittings.
* Rated up to 120 PSI.
* Custom Aluminum BCS Mount.
---
FITS:
* 2007 MAZDA 3 (2.3L) TURBO
* 2008 MAZDA 3 (2.3L) TURBO
* 2009 MAZDA 3 (2.3L) TURBO
* 2010 MAZDA 3 (2.3L) TURBO
* 2011 MAZDA 3 (2.3L) TURBO
* 2012 MAZDA 3 (2.3L) TURBO
FITS:
* 2004 MAZDA 6 (2.3L) TURBO
* 2005 MAZDA 6 (2.3L) TURBO
* 2006 MAZDA 6 (2.3L) TURBO
* 2007 MAZDA 6 (2.3L) TURBO
FITS:
* 2007 MAZDA MAZDASPEED 3 (2.3L) TURBO
* 2008 MAZDA MAZDASPEED 3 (2.3L) TURBO
* 2009 MAZDA MAZDASPEED 3 (2.3L) TURBO
FITS:
* 2010 MAZDA MAZDASPEED 3 (2.3L) TURBO
* 2011 MAZDA MAZDASPEED 3 (2.3L) TURBO
* 2012 MAZDA MAZDASPEED 3 (2.3L) TURBO
* 2013 MAZDA MAZDASPEED 3 (2.3L) TURBO
FITS:
* 2006 MAZDA MAZDASPEED 6 (2.3L) TURBO
* 2007 MAZDA MAZDASPEED 6 (2.3L) TURBO
