Product Description
BorgWarner AirWerks turbochargers are designed to create reliable and consistent boost, while reducing emissions and enhancing fuel efficiency. These turbochargers, including the popular BorgWarner S475 and S480 turbos, are purpose-built, utilizing extended-tip technology and a high-efficiency turbine stage. This configuration provides ultra-fast response and more than 70 psi of boost! BorgWarner AirWerks turbos offer faster spool-up at lower engine speeds, while providing powerful top-end for the boost for in performance you desire.

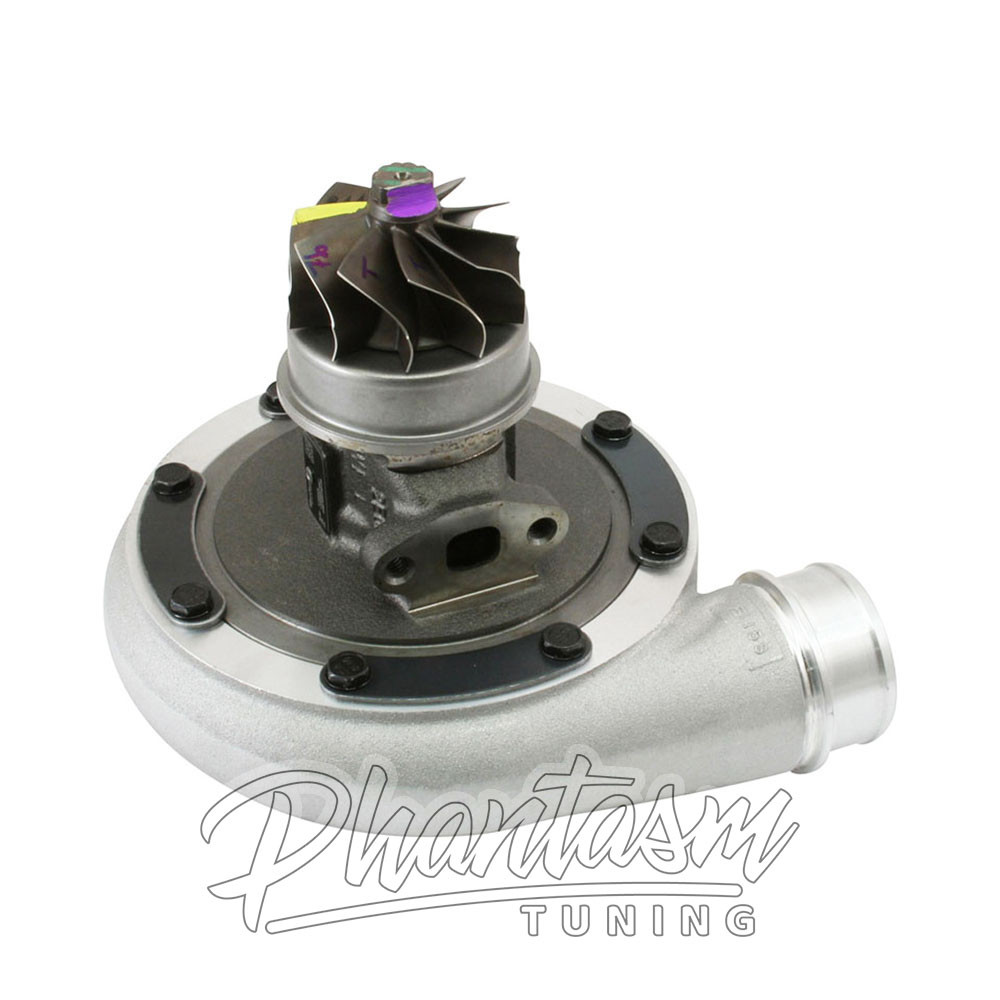

NOTE: Super Core assemblies include bearing housing, bearings, shaft, compressor wheel, compressor housing and turbine wheel. It does not include a turbine housing.
Product Features:
* 360 Degree thrust bearing.
* Integrated speed sensor port.
* Forged milled compressor wheel.
* Flexible compressor cover outlet options.
* Pre-machined boost port.
* Optimized compressor stage aerodynamics.
---
BORGWARNER SUPERCORE PART NUMBER (13009097053) *** 400 HP - 775 HP ***
*** NOTE: NOT INCLUDED WITH TURBO ASSEMBLIES: SPEED SENSOR, TURBINE OUTLET V-BAND, DRAIN PORT FITTING. ***
---
COMPRESSOR SPECIFICATIONS:
* COMPRESSOR TYPE: FORGED-MILLED WHEEL (FMW) EXTENDED TIP
* COMPRESSOR WHEEL OD (EXDUCER): 83.47 MM
* COMPRESSOR WHEEL INDUCER: 61.44 MM
* MAX FLOW RATE: 78 LB/MIN
* MAX RECOMMENDED TURBO SHAFT SPEED: 128,136 RPM (560 M/S)
* COMPRESSOR HOUSING CONNECTIONS / INLET: 4.00 INCH HOSE COUPLER
* COMPRESSOR HOUSING CONNECTIONS / OUTLET: 2.50 INCH HOSE COUPLER
---
TURBINE SPECIFICATIONS:
* TURBINE TYPE: INCONEL S300SX TURBINE WHEEL
* TURBINE WHEEL OD: 80 MM
* HOUSING MATERIAL: D5S SANDCAST
---
FITS: UNIVERSAL APPLICATIONS
