Product Description
*** (273 TQ / 364 HP) ***

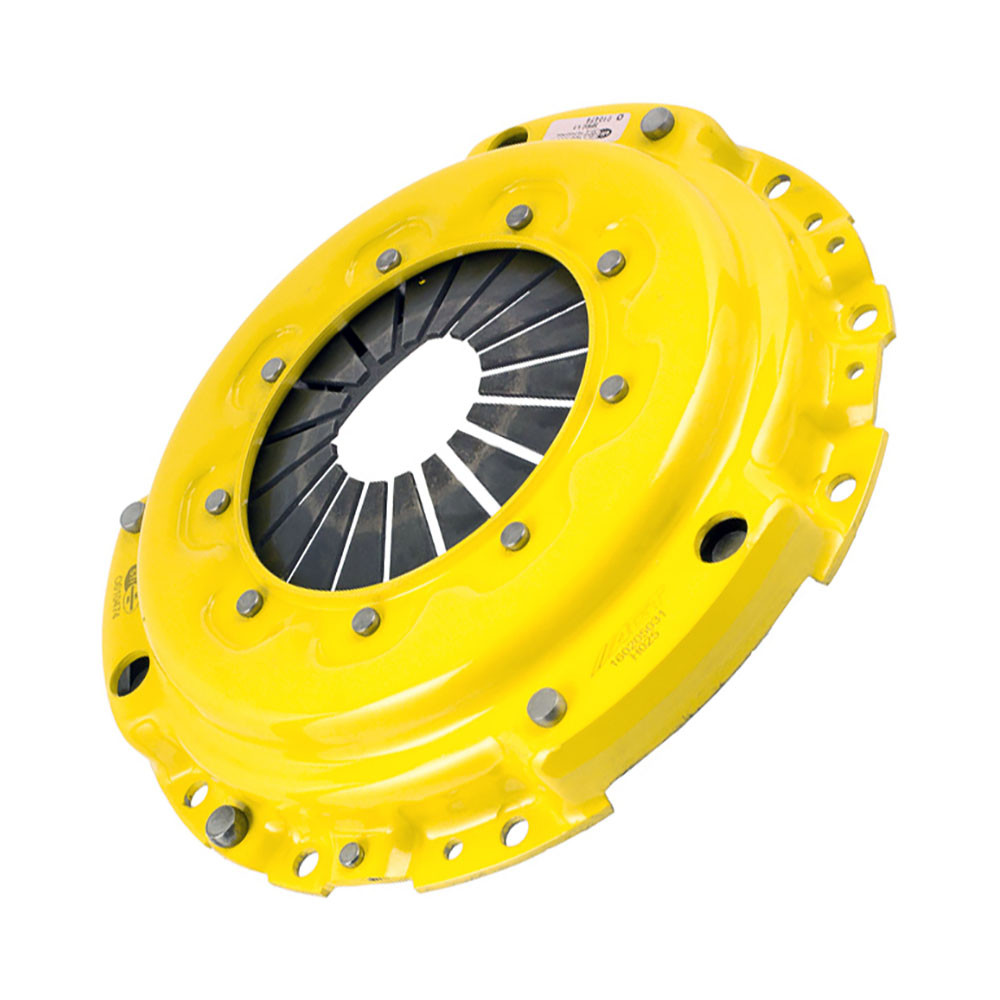

ACT-SB7-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

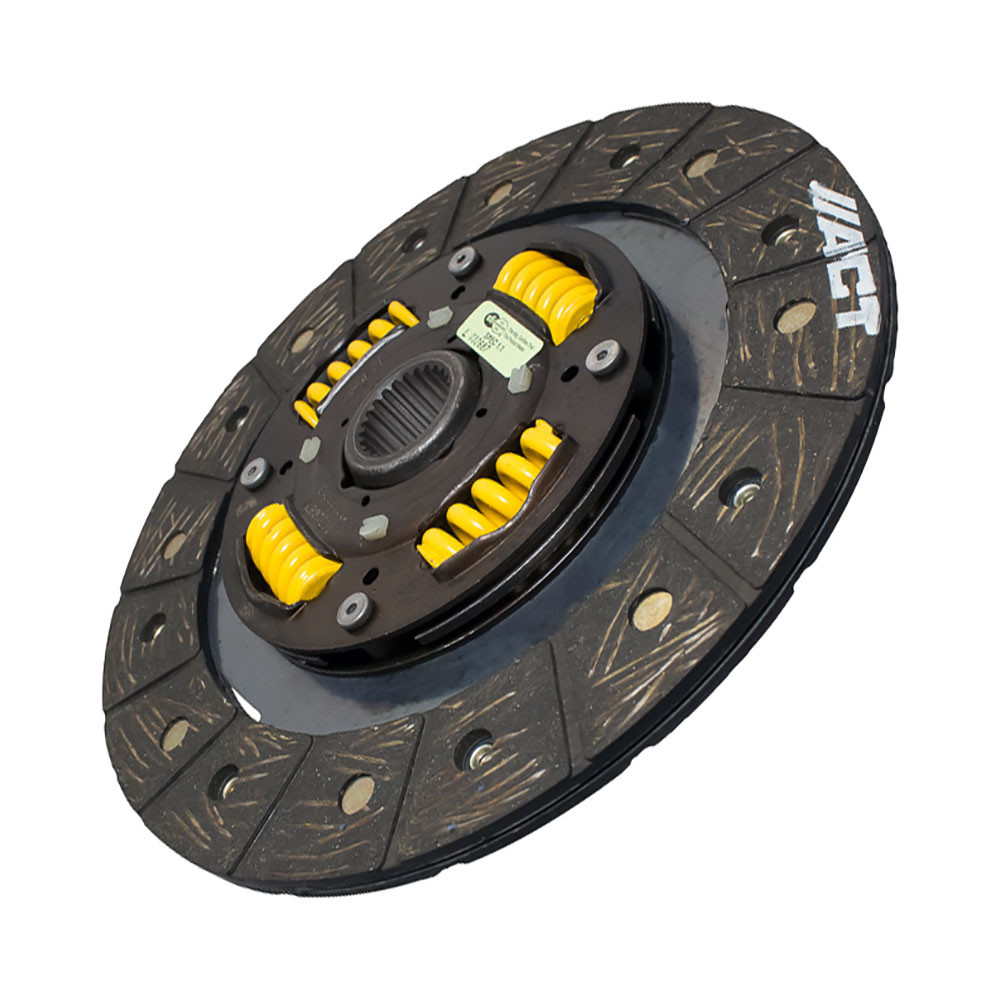

ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Clutch Features:
* Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle.
* Longer friction life, extended by ACT's exclusive diaphragm design.
* Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade.
* Recommended for street and race use.
* 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.
---
ACT-600705 is a Streetlite flywheel, which is considerably lighter than stock and is the most durable flywheel offering from ACT. Materials are properly distributed for maximum strength, lower inertia, good heat tolerance and rigidity. ACT's Streetlite flywheels are preferred for street or drag racing. ACT flywheels are serviceable and can be resurfaced with no need to purchase additional parts.
Flywheel Features:
* Noticeably improved engine response and acceleration, OE to mild gear rattle.
* Heat-treated forging for strength and toughness, induction-hardened ring gears for maximum life.
* One piece construction allows less opportunity for failure and provides uniform efficient heat transfer from the clutch disc. No more warped inserts or loose ring gears.
* Recommended for street and race use.
* Forged, CNC machined and dynamically computer balanced for smooth high RPM reliability.
---
Specifications:
* Torque Capacity: 273 TQ
* Horsepower Capacity: 364 HP
* 11.8 LBS Flywheel.
* ACT Part Numbers (3000504, 600705, AT90, PB1004, RB004, SB017)
NOTE: This flywheel is part of a conversion kit and cannot be used with the stock (OEM) clutch. ACT parts must be used.
---
INSTALLATION TIME: 7-8 HOURS
---
FITS:
* 2013 SCION FRS (2.0L) ENGINE
* 2014 SCION FRS (2.0L) ENGINE
* 2015 SCION FRS (2.0L) ENGINE
* 2016 SCION FRS (2.0L) ENGINE
FITS:
* 2013 SUBARU BRZ (2.0L) ENGINE
* 2014 SUBARU BRZ (2.0L) ENGINE
* 2015 SUBARU BRZ (2.0L) ENGINE
* 2016 SUBARU BRZ (2.0L) ENGINE
* 2017 SUBARU BRZ (2.0L) ENGINE
* 2018 SUBARU BRZ (2.0L) ENGINE
* 2019 SUBARU BRZ (2.0L) ENGINE
* 2020 SUBARU BRZ (2.0L) ENGINE
* 2021 SUBARU BRZ (2.0L) ENGINE
FITS:
* 2017 TOYOTA 86 (2.0L) ENGINE
* 2018 TOYOTA 86 (2.0L) ENGINE
* 2019 TOYOTA 86 (2.0L) ENGINE
* 2020 TOYOTA 86 (2.0L) ENGINE
* 2021 TOYOTA 86 (2.0L) ENGINE
